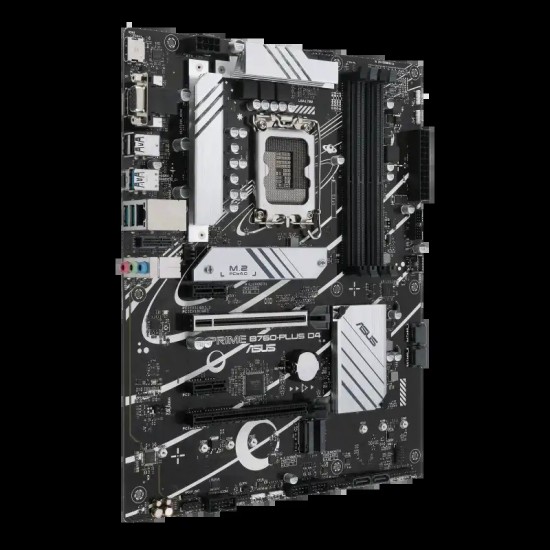

ASUS PRIME B760-PLUS ATX Motherboard
23,625.00৳
| Key Feature | Quick Insight |
|---|---|
| CPU Compatibility | Intel 14th/13th/12th Gen Core Series |

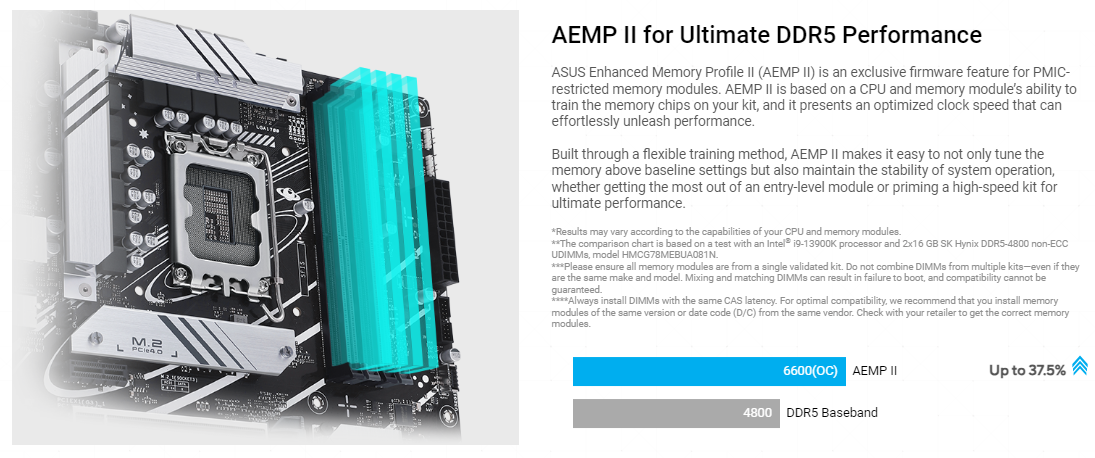

| Memory Performance | 192GB DDR5, 7200+MHz (OC), OptiMem |
| PCIe & Expansion | PCIe 5.0 x16 (GPU ready), extra PCIe 4.0 x16 & 2x PCIe 3.0 x1 |
| Storage Interface | Triple PCIe 4.0 M.2 + 4 SATA 6Gb/s |
| Display Output | HDMI 2.1 + DP 1.4 + VGA (Triple Display Support) |
| Networking | Realtek 2.5Gb Ethernet, Wi-Fi Ready via M.2 E-Key |
| Audio System | Realtek 7.1 HD, Premium Audio PCB Design |
| USB Ports | 6 Rear USB incl. Gen 2×2 Type-C7 Front USB incl. Type-C |

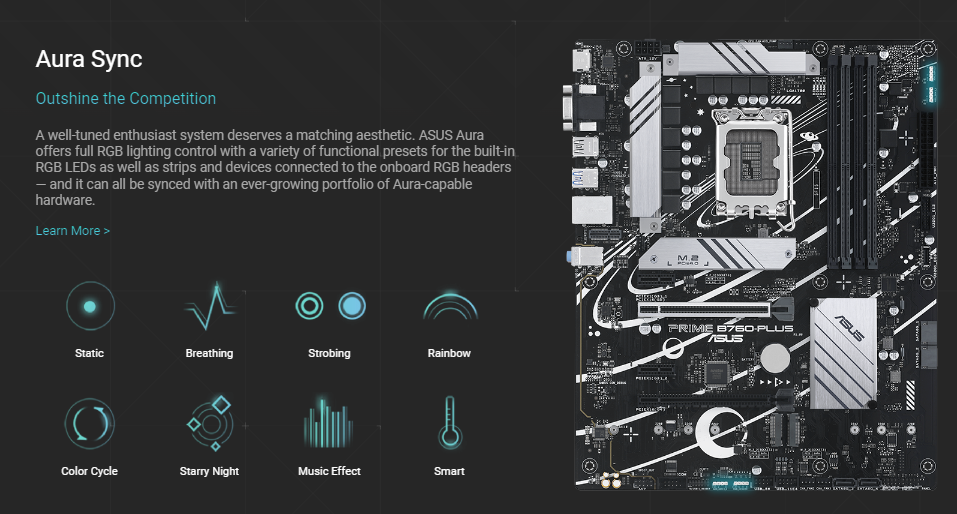

| RGB & Aesthetics | Aura Sync, 3x ARGB + Aura RGB Header |
| Thermal & Cooling | VRM Heatsinks, M.2 Heatsinks, Fan Xpert 2+, Full Fan Control |
| Ideal Use Case | Gamers, Power Users, Creators needing high-speed DDR5, PCIe 5.0, and robust storage expandability |
Description
| Feature Category | Description |
|---|---|
| Model | ASUS PRIME B760-PLUS |
| Socket | Intel LGA1700 |
| Supported CPU | Intel 14th / 13th / 12th Gen Core, Pentium Gold, Celeron |
| Chipset | Intel B760 |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
| Memory Support | 4 x DDR5 DIMM, up to 192GBUp to 7200+ MHz (OC)Dual Channel, XMP Support, OptiMem |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU)1 x PCIe 4.0 x16 (x4 mode, B760)2 x PCIe 3.0 x1 |
| Storage Interface | 3 x M.2 (PCIe 4.0 x4/x4/x2)4 x SATA 6Gb/sRAID 0/1/5/10 |
| Graphics Output | 1 x HDMI 2.1 (4K@60Hz)1 x DisplayPort 1.4 (4K@60Hz)1 x VGA |
| Network | 1 x Realtek 2.5Gb Ethernet |
| Wireless Support | M.2 E Key slot (Wi-Fi module sold separately) |
| Audio System | Realtek 7.1 HD Audio CODEC24-bit/192kHz playbackAudio Shielding, Premium Capacitors |
| USB Ports (Rear) | 1 x USB 3.2 Gen 2×2 (Type-C)2 x USB 3.2 Gen 2 (Type-A)1 x USB 3.2 Gen 1 (Type-A)2 x USB 2.0 (Type-A) |
| USB Ports (Front) | 1 x USB 3.2 Gen 1 Type-C1 x USB 3.2 Gen 1 header (2 ports)2 x USB 2.0 headers (4 ports) |
| Cooling Support | 1 x 4-pin CPU Fan Header1 x 4-pin AIO Pump Header3 x 4-pin Chassis Fan Headers |
| RGB & Lighting Headers | 3 x Addressable Gen 2 headers1 x Aura RGB header |
| Internal I/O Headers | 1 x 24-pin ATX Power1 x 8-pin CPU Power1 x COM, 1 x Clear CMOS1 x TPM, 1 x AAFP1 x S/PDIF, 1 x Thunderbolt (USB4)1 x 20-3 pin System Panel Header |
| TPM Support | 1 x SPI TPM Header (14-1 pin) |
| Special Features | ASUS 5X Protection III, DIGI+ VRM, LANGuard, SafeSlot Core+Q-DIMM, Q-LED Core, Q-SlotProCool, Aura Sync |
| Thermal Solution | M.2 Heatsinks, VRM Heatsinks, Fan Xpert 2+ |
| Software Bundle | Armoury Crate, AI Suite 3, CPU-Z, WinRAR, Norton 360 Trial |
| Warranty | 2 Year Official Warranty (1 year parts/labor, no on-site) + 1 Additional Year from Takeplus Computer |
| Price in Bangladesh | ৳23,000 Takeplus Computer |
