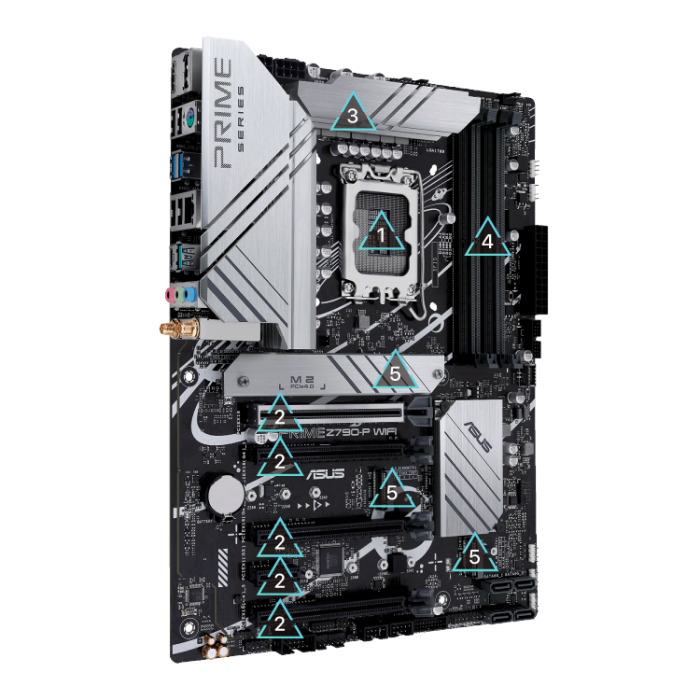

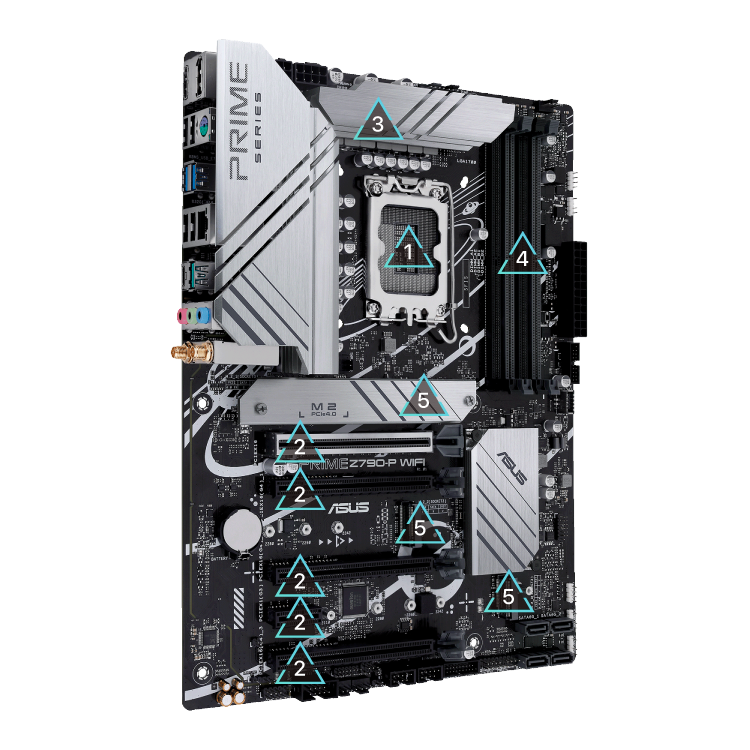

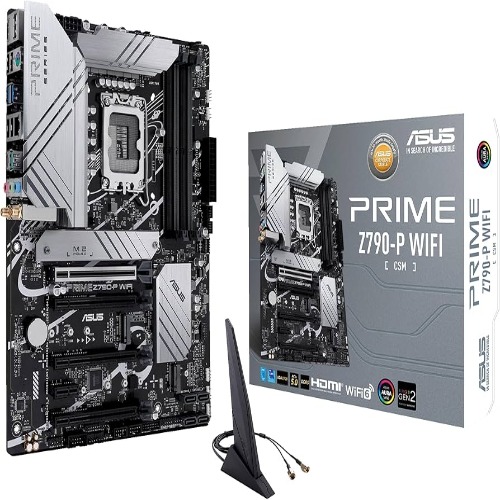

ASUS PRIME Z790-P WIFI-CSM ATX Motherboard
37,800.00৳
| Key Feature | Quick Insight |
|---|---|
| CPU Compatibility | Intel 14th*, 13th & 12th Gen LGA1700 |
| Memory Performance | 128GB DDR5, up to 7200+ MHz OC, OptiMem II, XMP |
| PCIe & Expansion | PCIe 5.0 x16 + PCIe 4.0/3.0 slots for GPUs & add-ons |
| Storage Interface | Triple M.2 (2 x 22110 supported), 4 x SATA, RAID 0/1/5/10 |
| Display Output | HDMI 2.1 + DP 1.4 for dual 4K@60Hz |
| Network & Wireless | 2.5Gb LAN + Wi-Fi 6 + Bluetooth 5.2 |
| USB Connectivity | USB 3.2 Gen 2×2 Type-C (20Gbps), USB 3.2 Gen 2/1, USB 2.0 |
| Audio System | 7.1 Surround HD Audio, Optical Out, Premium Components |
| RGB & DIY Friendly | 5 RGB headers (Aura Sync), Q-DIMM, Q-Slot, Q-LED, M.2 heatsinks |
| Use Case | Enthusiasts, gamers, and workstation users needing PCIe 5.0, Wi-Fi 6, and extensive USB connectivity |
Description
| Feature Category | Description |
|---|---|
| Model | ASUS PRIME Z790-P WIFI-CSM |
| Socket | Intel LGA1700 |
| Supported CPU | Intel 14th*, 13th & 12th Gen Core, Pentium Gold, Celeron *(via BIOS update) |
| Chipset | Intel Z790 |
| BIOS | 192Mb Flash ROM (128 + 64), UEFI AMI |
| Form Factor | ATX (30.5 cm x 23.4 cm) |
| Memory Support | 4 x DDR5 DIMM, up to 128GBUp to 7200+ MHz (OC)Dual Channel, XMP, OptiMem II |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU)3 x PCIe 4.0 x16 (x4 mode)1 x PCIe 3.0 x1 |
| Storage Interface | 3 x M.2 (PCIe 4.0 x4 & SATA)4 x SATA 6Gb/sRAID 0/1/5/10 (PCIe & SATA) |
| Graphics Output | 1 x HDMI 2.1 (4K@60Hz)1 x DisplayPort 1.4 (4K@60Hz) |
| Network | Realtek 2.5Gb EthernetWi-Fi 6 (802.11ax), Bluetooth v5.2 |
| Audio System | Realtek 7.1 HD Audio CODEC24-bit/192kHz playbackPremium caps, shielding, optical out |

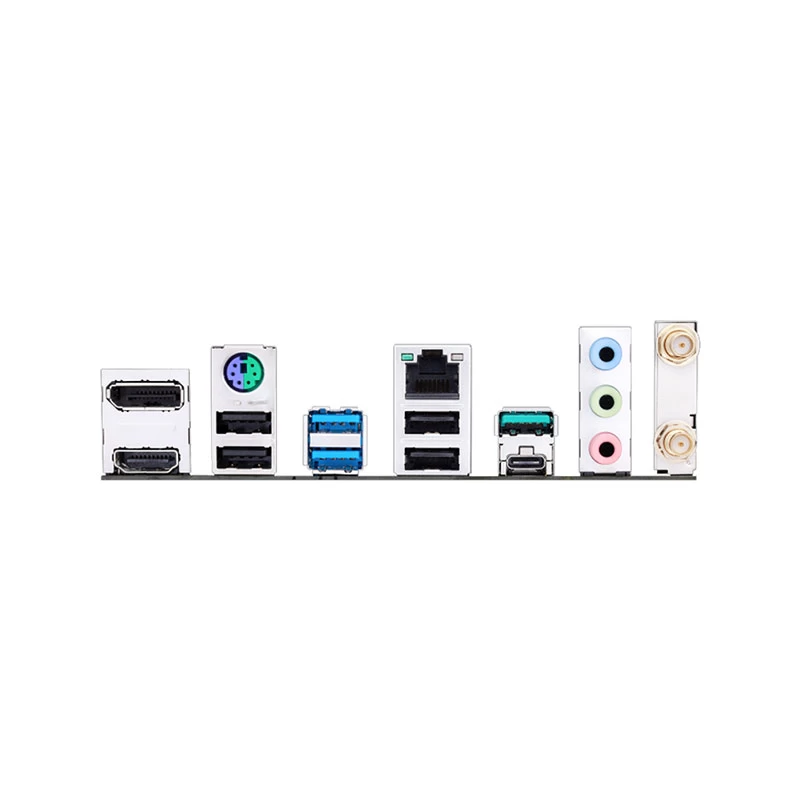

| USB Ports (Rear) | 1 x USB 3.2 Gen 2×2 Type-C (20Gbps)1 x USB 3.2 Gen 2 Type-A2 x USB 3.2 Gen 1 Type-A4 x USB 2.0 |
| USB Ports (Front) | 1 x USB 3.2 Gen 2 Type-C4 x USB 3.2 Gen 14 x USB 2.0 |
| Cooling Support | 1 x CPU Fan, 1 x CPU OPT1 x AIO Pump3 x Chassis Fan |
| RGB & Lighting Headers | 3 x Addressable Gen 22 x Aura RGB |
| Internal I/O Headers | TPM, Clear CMOS, S/PDIF Out, COM Port, Thunderbolt (USB4), Front Panel Audio, System Panel |
| TPM Support | SPI TPM header (14-1 pin) |
| Special Features | 5X Protection III, DIGI+ VRM, LANGuardQ-DIMM, Q-LED Core, Flexible M.2 Heatsinks, SafeSlot Core+ |
| Software Bundle | Armoury Crate, Fan Xpert 4, TurboV EVO, AI Suite 3, ASUS CPU-Z, Norton, WinRAR |
| Operating System | Windows 11 / 10 |
| Warranty | 2 Year Official Warranty (1 year parts/labor, no on-site) + 1 Additional Year from Takeplus Computer |
| Price in Bangladesh | ৳36,600 Takeplus Computer |
