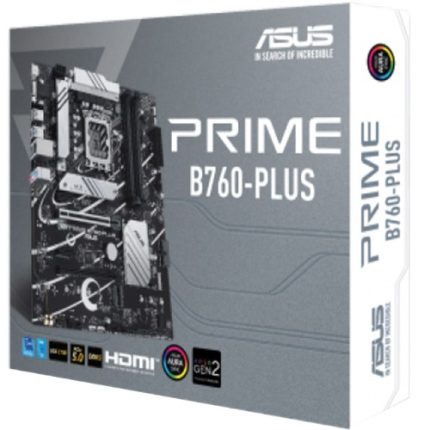

ASUS PRIME B760-PLUS ATX Motherboard
23,625.00৳

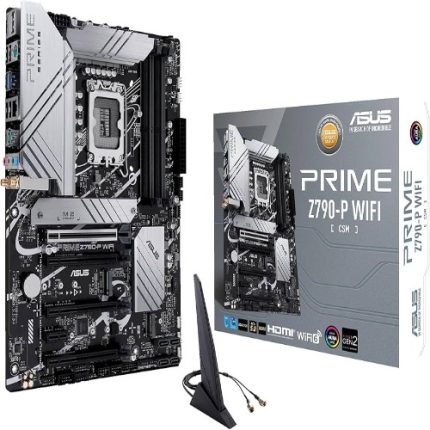

ASUS PRIME Z790-P WIFI-CSM ATX Motherboard
37,800.00৳

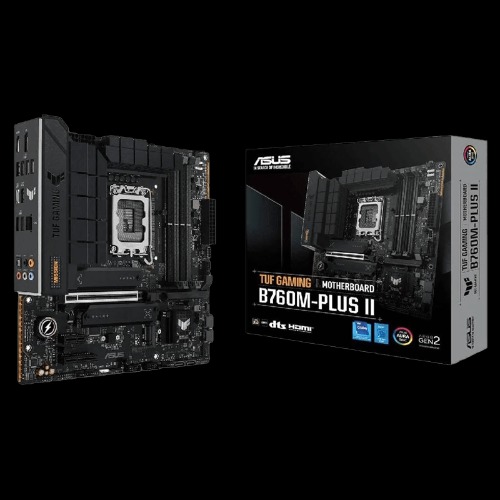

ASUS TUF GAMING B760M-PLUS II LGA1700 Micro-ATX Motherboard
23,100.00৳
| Key Feature | Quick Insight |
|---|---|
| CPU Compatibility | Intel 14th/13th/12th Gen, Pentium, Celeron |
| Memory Performance | Up to 192GB DDR5, 7800+ MHz OC with XMP & AEMP II |
| PCIe & Expansion | PCIe 5.0 x16 GPU Ready + PCIe 4.0/3.0 Slots |
| Storage Interface | 3x M.2 (all PCIe 4.0) + 4 SATA 6Gb/s with RAID Support |
| Display Output | HDMI 2.1 + DisplayPort 1.4 (Dual 4K@60Hz) |
| Network | 2.5Gb LAN with TUF LANGuard |
| USB Connectivity | Rear: USB 20Gbps Type-C + USB 10/5/2.0Front: USB Type-C, USB 5Gbps, USB 2.0 |
| Audio System | 7.1 Surround, S/PDIF Out, Audio Shielding |
| Build Quality | Military-Grade TUF Components, Pre-installed I/O Shield |
| Cooling Capability | Dedicated CPU, AIO, Chassis fan headers with advanced fan control |
| Ideal Use Case | Gamers and Power Users wanting robust micro-ATX performance, PCIe 5.0 GPU readiness, and durable design |
Description
| Feature Category | Description |
|---|---|
| Model | ASUS TUF GAMING B760M-PLUS II |
| Socket | Intel LGA1700 |
| Supported CPU | Intel 14th/13th/12th Gen Core, Pentium Gold, Celeron |
| Chipset | Intel B760 |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | Micro-ATX (24.4 cm x 24.4 cm) |
| Memory Support | 4 x DDR5 DIMM, up to 192GBUp to 7800+ MHz (OC)Dual Channel, XMP & AEMP II Support |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU)1 x PCIe 4.0 x41 x PCIe 3.0 x1 |
| Storage Interface | 3 x M.2 (PCIe 4.0 x4/x4/x2)4 x SATA 6Gb/sRAID 0/1/5/10 |
| Graphics Output | 1 x HDMI 2.1 (4K@60Hz)1 x DisplayPort 1.4 (4K@60Hz) |
| Network | Realtek 2.5Gb Ethernet with TUF LANGuard |
| Audio System | Realtek 7.1 HD Audio CODEC24-bit/192kHz playbackAudio shielding, optical S/PDIF, premium capacitors |
| USB Ports (Rear) | 1 x USB 20Gbps (Type-C)1 x USB 10Gbps (Type-A)2 x USB 5Gbps (Type-A)4 x USB 2.0 |
| USB Ports (Front) | 1 x USB 10Gbps (Type-C)2 x USB 5Gbps5 x USB 2.0 |
| Cooling Support | 1 x CPU Fan1 x CPU OPT1 x AIO Pump3 x Chassis Fans |
| RGB & Lighting Headers | 3 x Addressable Gen 2 headers |
| Internal I/O Headers | 1 x 24-pin ATX Power2 x 8-pin CPU Power1 x Clear CMOS1 x F-AUDIO, 1 x Thunderbolt (USB4)1 x 20-3 pin System Panel |
| TPM Support | Via supported CPU/chipset |
| Special Features | TUF Protection: DIGI+ VRM, LANGuard, SafeSlot Core+Q-Design: M.2 Q-Latch, PCIe Q-Release, Q-DIMM, Q-LEDPre-mounted I/O shield, ProCool, SafeDIMM |
| Thermal Solution | M.2 & VRM Heatsinks, Fan Xpert 2+, AI Cooling |
| Software Bundle | Armoury Crate, AI Suite 3, DTS Audio, CPU-Z, WinRAR, Norton 360 |
| Warranty | 2 Year Official Warranty (1 year parts/labor, no on-site) + 1 Additional Year from Takeplus Computer |
| Price in Bangladesh | ৳22,500 Takeplus Computer |
