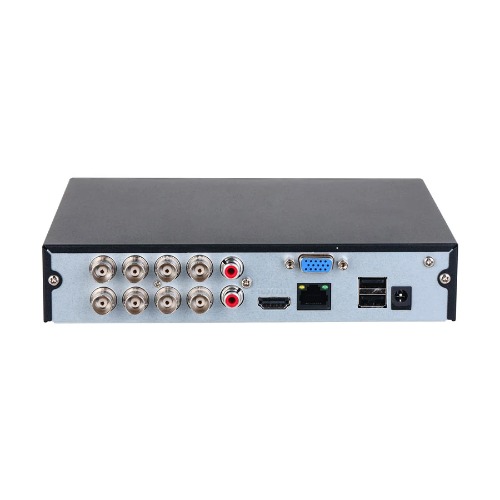

Dahua DH-XVR1B08-I-SSD-512G 08 Channel 1080N/720P XVR
7,500.00৳
| Key Feature | Details |
|---|---|
| Channels | 8 Analog + Up to 10 IP (Hybrid Mode) |
| Built-in Storage | 512 GB SSD (Default), Up to 1TB Supported |
| AI Smart Detection | 4-Channel SMD Plus (Human/Vehicle Filtering) |
| Video Compression | AI Coding, H.265+, H.265, H.264+, H.264 |
| Maximum Resolution | 1080p |
| Dual Stream Support | Yes |
| Two-way Audio | Yes (via shared RCA input) |
| Mobile Access | Android & iOS |
| Third-party Support | ONVIF, Sony, Axis, Panasonic, Arecont, Samsung |
| Backup Methods | USB Device, Network |
| Browser Access | Chrome, Firefox, Internet Explorer 9+ |
| Display Layout | Up to 16 Channels (with IP extension enabled) |
| Compact Size | Lightweight & low power (<7W), ideal for small to medium installations |
| Warranty | Total 1 Year warranty by Takeplus Computer |
Description
| Feature | Description | |
|---|---|---|
| Brand | Dahua | |
| Model | DH-XVR1B08-I-SSD-512G | |
| Type | 1080N/720p Penta-brid XVR | |
| Operating System | Embedded Linux | |
| Processor | Industrial-grade processor | |
| Operating Interface | Web, Local GUI | |
| Analog Camera Input | 8 BNC ports (HDCVI/AHD/TVI/CVBS auto-detect) | |
| IP Camera Input | Up to 10 channels (Max 6MP each); default + converted analog | |
| Maximum Recording Resolution | 1920 × 1080 | |
| Recording Compression | AI Coding, H.265+, H.265, H.264+, H.264 | |
| Audio Input | 1-channel RCA + 8 BNC coaxial audio | |
| Audio Output | 1-channel RCA | |
| Two-way Audio | Yes (shared with 1st channel) | |
| Frame Rate | PAL: 1–25 fps, NTSC: 1–30 fps | |
| Audio Compression | G.711a, G.711u, PCM | |
| Video Bit Rate | 32 kbps – 4096 kbps per channel | |
| Audio Bit Rate | 64 kbps | |
| Audio Sampling Rate | 8 kHz, 16-bit | |
| Dual Stream Support | Yes | |
| Stream Types | Main Stream, Sub Stream | |
| Recording Modes | General, Motion Detection, Intelligent, Alarm | |
| Recording Playback | 1/4/9 channels | |
| Playback Modes | Instant, General, Event, Tag, Smart (MD) | |
| Backup | USB device and network | |
| Smart Features | 4-channel SMD Plus (Human/Vehicle filtering) | |
| Alarm Functions | Motion, PIR, Network alarms, Tampering, Video Loss, HDD errors | |
| Alarm Linkage | Record, Snapshot, Buzzer, Voice Prompt, Email, Log | |
| Video Output | 1 HDMI, 1 VGA (1920×1080, 1280×1024, 1280×720) | |
| Display Layout | 1/4/8/9 (Normal), 1/4/8/9/16 (with IP extension) | |
| Third-Party Camera Support | ONVIF, Axis, Panasonic, Sony, Arecont, Samsung | |
| Network Interface | 1× RJ45 (10/100 Mbps) | |
| Network Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, SMTP, DHCP, DNS, DDNS, FTP, P2P, Alarm Server, etc. | |
| Browser Compatibility | Chrome, Firefox, IE 9+ | |
| Mobile Access | Android, iOS | |
| Storage | 512GB SSD pre-installed, supports up to 1TB SATA | |
| USB Ports | 2× USB 2.0 (rear) | |
| Power Supply | 12V DC, 1.5A | |
| Power Consumption | < 7W (with SSD) | |
| Dimensions (W × D × H) | 198.3 × 202.9 × 41.5 mm | |
| Net Weight | 0.62 kg | |
| Color | Black | |
| Warranty |
(No warranty for physical/burn damage) |
|
| Country of Origin | China |
