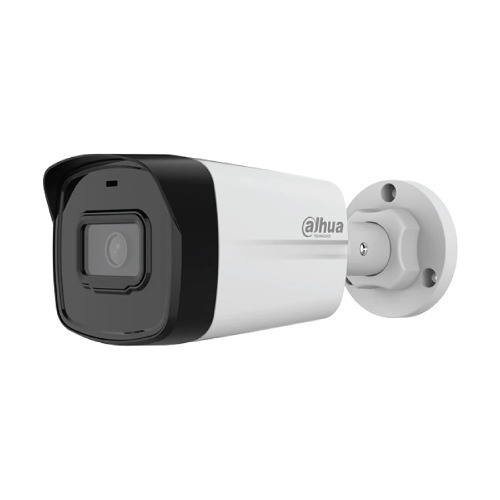

Dahua-IPC-HFW1230TL2-S5
2,750.00৳
| Feature | Description |
|---|---|
| Resolution | 2MP Full HD (1920×1080) |
| Lens | 3.6 mm fixed focal, 84° horizontal FOV |
| IR Night Vision | Up to 30 m with 2 IR LEDs |
| Video Compression | H.265 / H.264 with Smart Codec |
| Frame Rate | Up to 30 fps at 1080p |
| Smart Features | Motion detection, RoI, privacy masking, smart IR illumination |
| Image Enhancements | DWDR, 3D Noise Reduction, BLC, HLC |
| Network Support | ONVIF, CGI, P2P, IPv4/IPv6, FTP |
| Power Options | 12V DC or PoE (802.3af) |
| Build & Protection | IP67 rated, weatherproof, plastic casing |
| Size & Weight | 198.9×80.2×76.2 mm, 0.25 kg net |
| Warranty | Total 1 Year warranty by Takeplus Computer |
Description
| Category | Specification | |
|---|---|---|
| Image Sensor | 1/2.8″ CMOS | |
| Max. Resolution | 1920 (H) × 1080 (V) | |
| ROM / RAM | 16 MB / 64 MB | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | |
| Minimum Illumination | 0.01 lux@F2.0 (Color, 30 IRE)0.001 lux@F2.0 (B/W, 30 IRE)0 lux (Illuminator on) | |
| S/N Ratio | > 56 dB | |
| Illumination Distance | Up to 30 m (98.4 ft) (IR) | |
| Illuminator On/Off Control | Auto; manual | |
| Illuminator Number | 2 (IR LED) | |
| Pan/Tilt/Rotation Range | Pan: 0°–360°Tilt: 0°–78°Rotation: 0°–360° | |
| Lens Type / Mount | Fixed-focal / M12 | |
| Focal Length | 3.6 mm | |
| Max. Aperture | F2.0 | |
| Field of View (H/V/D) | 84° / 45° / 100° | |
| Iris Control | Fixed | |
| Close Focus Distance | 0.8 m (2.6 ft) | |
| DORI Distance (Detect/Observe/Recognize/Identify) | 49.7 m / 19.9 m / 9.9 m / 5.0 m | |
| Video Compression | H.265; H.264; H.264B; H.264H; MJPEG (sub stream only) | |
| Smart Codec | Smart H.265+; Smart H.264+ | |
| Video Frame Rate | Main: 1920 × 1080 @ 1–25/30 fpsSub: 704 × 576 @ 1–25 fps / 704 × 480 @ 1–30 fps | |
| Stream Capability | 2 streams | |
| Resolutions Supported | 1080p, 1.3M, 720p, D1, VGA, CIF | |
| Bit Rate Control | CBR / VBR | |
| Video Bit Rate Range | H.264: 32 kbps–6144 kbpsH.265: 12 kbps–6144 kbps | |
| Day/Night Mode | Auto (ICR) / Color / B/W | |
| BLC / HLC / WDR | Yes / Yes / DWDR | |
| White Balance Modes | Auto; natural; street lamp; outdoor; manual; regional custom | |
| Gain Control | Auto / manual | |
| Noise Reduction | 3D NR | |
| Motion Detection | ON/OFF (4 areas, rectangular) | |
| Region of Interest (RoI) | Yes (4 areas) | |
| Smart Illumination | Yes | |
| Image Rotation | 0°/90°/180°/270° (90°/270° with 1080p or lower) | |
| Mirror | Yes | |
| Privacy Masking | 4 areas | |
| Alarm Events | Network disconnection, IP conflict, illegal access, motion detection, video tampering, security exception | |
| Network Port | RJ-45 (10/100 Base-T) | |
| SDK and API | Yes | |
| Cyber Security Features | Encryption, WSSE, account lockout, security logs, trusted boot, upgrade, execution, X.509 cert. mgmt. | |
| Network Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP | |
| Interoperability | ONVIF (Profile S), CGI, P2P | |
| Max Users | 6 (Total bandwidth: 36 Mbps) | |
| Storage | FTP | |
| Browser Support | IE, Chrome, Firefox | |
| Management Software | Smart PSS, DSS, DMSS | |
| Mobile Client | iOS, Android | |
| Certifications | CE-LVD, CE-EMC, FCC | |
| Power Supply | 12V DC / PoE (802.3af) | |
| Power Consumption | Basic: 1.3 W (12 VDC), 2.1 W (PoE)Max: 2.9 W (12 VDC), 3.9 W (PoE) | |
| Operating Temperature | –40 °C to +55 °C (–40 °F to +131 °F) | |
| Operating Humidity | ≤ 95% | |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | |
| Protection Level | IP67 | |
| Casing Material | Plastic | |
| Product Dimensions (L×W×H) | 198.9 mm × 80.2 mm × 76.2 mm (7.83″ × 3.16″ × 3.00″) | |
| Net Weight | 0.25 kg (0.55 lb) | |
| Gross Weight | 0.40 kg (0.88 lb) | |
| Warranty |
(No warranty for physical/burn damage) |
