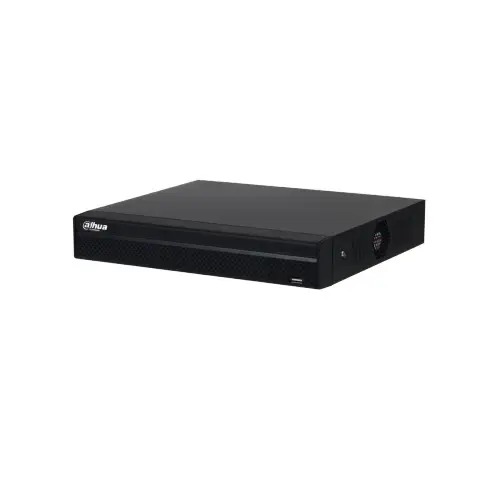

Dahua NVR1108HS-8P-S3/H 8 Channel Network Video Recorder (NVR)
10,430.00৳
| Feature | Details |
|---|---|
| Channel Capacity | 8 Channels |
| Built-in PoE Ports | 8 Ports (Max 25.5W each) |
| Total PoE Power | 72W |
| Max Input Resolution | 8MP |
| Storage | 1 SATA (Up to 8TB) |
| Compression | Smart H.265+/H.264+ |
| Video Output | HDMI & VGA (1080P Max) |
| Mobile Access | iDMSS, gDMSS |
| Browser Support | Chrome, Firefox, IE9+ |
| Power Consumption | 10W (Without HDD) |
| Dimensions | 260×225×47.6 mm |
| Warranty | Total 1 Year warranty by Takeplus Computer |
Description
| Category | Specification | |
|---|---|---|
| Brand | Dahua | |
| Model | NVR1108HS-8P-S3/H | |
| Product Type | 8-Channel PoE NVR | |
| Form Factor | Compact 1U | |
| Main Processor | Industrial-grade Embedded Processor | |
| Operating System | Embedded Linux | |
| User Interface | New 4.0 Style | |
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264 | |
| Audio Compression | PCM, G.711A, G.711U, G.726, AAC | |
| Max Resolution Support | Up to 8MP | |
| Max Input Bandwidth | 80 Mbps | |
| Video Output | HDMI and VGA (Simultaneous, max 1080P) | |
| Recording Modes | Manual > Alarm > Motion > Timed | |
| Alarm Functions | Motion detection, video loss, privacy masking, PIR, IPC alarm | |
| Mobile Access | iDMSS (iOS), gDMSS (Android) | |
| Third-Party Support | ONVIF (Profile S/G/T), CGI, SDK | |
| Playback Channels | Up to 8 | |
| Multi-screen Display | Yes (Up to 8 Cameras) | |
| Interface Ports | 1x RJ-45 10/100 Mbps (uplink), 8x RJ-45 PoE 10/100 Mbps | |
| PoE Total Power Budget | 72W Total, Max 25.5W per Port | |
| USB Ports | 1 Front USB 2.0, 1 Rear USB 2.0 | |
| Internal HDD | 1x SATA 2.0, up to 8TB (HDD not included) | |
| Power Supply | DC Input (exact voltage not specified) | |
| Power Consumption | ≤10W (without HDD) | |
| Dimensions (W×L×H) | 260 × 225 × 47.6 mm | |
| Box Dimensions | 87 × 331 × 312 mm | |
| Net Weight | 0.84 kg (1.85 lb) | |
| Gross Weight | 1.98 kg (4.37 lb) | |
| Operating Conditions | 0°C to 40°C | |
| Warranty |
(No warranty for physical/burn damage) |
