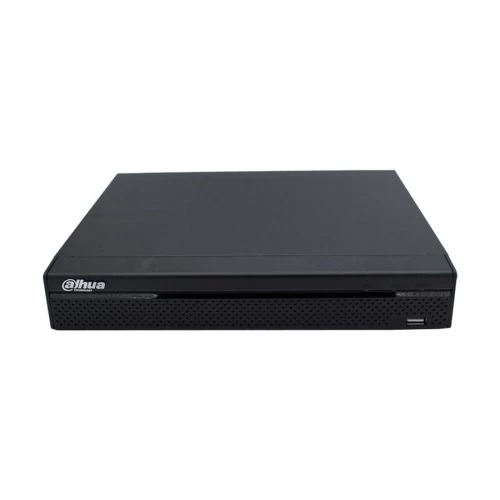

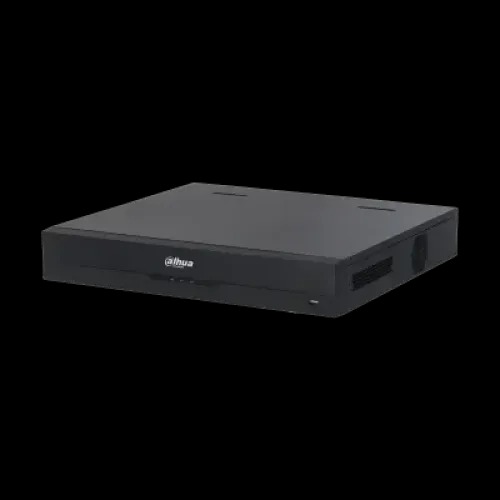

Dahua NVR4232-EI 32 Channel 1U 2HDDs WizSense NVR
19,000.00৳
| Feature | Details |
|---|---|
| Channel Capacity | 32 IP Cameras |
| Video Output | HDMI & VGA (up to 4K) |
| Max Storage | 2x HDD up to 16TB each (32TB total) |
| Decoding Performance | Up to 16ch 1080p or 32ch 720p (AI off) |
| Smart AI Features | Face Detection, Perimeter Protection, SMD+, Heatmap |
| Playback Channels | Up to 16 |
| Backup Method | USB or Network |
| Audio Channels | 1 In, 1 Out (RCA) |
| Mobile Access | iDMSS, gDMSS |
| Compression | Smart H.265+/H.264+ |
| Interoperability | ONVIF, CGI, SDK |
| Dimensions | 375×284.3×53 mm |
| Weight | 1.51 kg Net, 2.76 kg Gross |
| Warranty | Total 1 Year warranty by Takeplus Computer |
Description
| Category | Specification | |
|---|---|---|
| Brand | Dahua | |
| Model | NVR4232-EI | |
| Product Type | 32 Channel 1U WizSense NVR | |
| Main Processor | Industrial-grade Embedded Processor | |
| Operating System | Embedded Linux | |
| Video Input | 32 IP Camera Channels | |
| Audio Input/Output | 1-ch RCA In / 1-ch RCA Out | |
| Two-Way Talk | Supported | |
| Display Output | 1 HDMI, 1 VGA | |
| Max Output Resolution | Up to 3840×2160 | |
| USB Ports | 1x Front USB 2.0, 1x Rear USB 3.0 | |
| RS232/RS485 | 1x RS232 (debug/pass-through), 1x RS485 (PTZ control) | |
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG | |
| Audio Compression | G.711a/u, PCM, G726 | |
| Recording Resolution | 16MP to CIF | |
| Decoding Capacity (AI Off) | Up to 32-ch 720p or 16-ch 1080p @30FPS | |
| Decoding Capacity (AI On) | Up to 16-ch 720p or 12-ch 1080p @30FPS | |
| Multi-screen Display | 1st Screen: 1/4/8/9/16/25/36; 2nd Screen: 1/4/8/9/16 | |
| Max Input Bandwidth | 256 Mbps (AI off), 180 Mbps (AI on) | |
| Max Record Rate | 256 Mbps | |
| Storage | 2 SATA Ports (up to 16TB each) | |
| Playback Channel | Up to 16 Channels | |
| Playback Modes | Instant, Event, Smart, Tag | |
| Backup | USB Device or Network | |
| Intelligent Features | Face Detection/Recognition, Perimeter Protection, People Counting, Heatmap, SMD+ | |
| General Alarm | Motion, Video Loss, Privacy Masking, PIR, Scene Change | |
| Anomaly Alarm | Disk Full, Network Issues, IP/MAC Conflicts, Cybersecurity Exception | |
| Alarm Linkage | Snapshot, Recording, Preset, Buzzer, Log, Email | |
| Browser Support | Chrome, IE9+, Firefox | |
| Mobile App | iDMSS (iOS), gDMSS (Android) | |
| Third Party Compatibility | Panasonic, Sony, Samsung, Axis, Pelco, Canon, Arecont, ONVIF | |
| Interoperability | ONVIF (22.06 Profile T/S/G), CGI, SDK | |
| Network Protocols | HTTP, HTTPS, IPv4/6, TCP/IP, SNMP, SMTP, DHCP, FTP, DDNS, NTP, P2P, etc. | |
| Network Port | 1x RJ-45 10/100/1000 Mbps | |
| Power Supply | AC 100–240V, 50–60Hz | |
| Power Consumption | ≤10W (without HDD) | |
| Operating Conditions | –10°C to +55°C, 86–106kpa | |
| Storage Conditions | -20°C to +60°C, 30–85% RH | |
| Dimensions (W×L×H) | 375 × 284.3 × 53 mm | |
| Net Weight | 1.51 kg | |
| Gross Weight | 2.76 kg | |
| Warranty |
(No warranty for physical/burn damage) |
