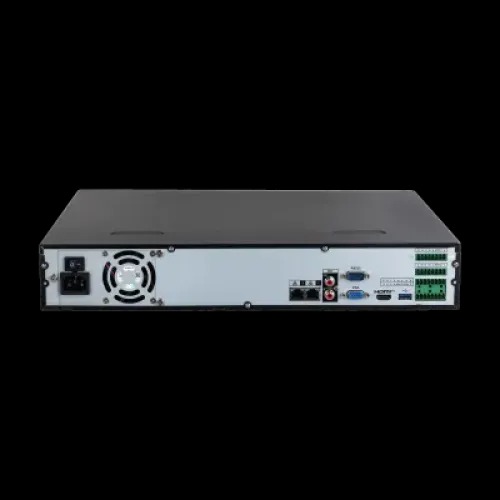

Dahua NVR4432-EI 32 Channel WizSense Network Video Recorder (NVR)
37,500.00৳
| Feature | Details |
|---|---|
| Channel Support | 32 IP Camera Channels |
| Max Resolution | Up to 16MP |
| AI Analytics | Face Recognition, Perimeter Protection, Heat Map, SMD+ |
| Decoding Flexibility | Smart load balancing with or without AI |
| Storage Capacity | Up to 64TB via 4x 16TB SATA ports |
| Interface Options | VGA, HDMI, USB 2.0/3.0, RS232, RS485 |
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
| Network Ports | Dual Gigabit Ethernet |
| Mobile Viewing | iDMSS (iOS), gDMSS (Android) |
| Browser Compatibility | Chrome, Firefox, IE9+ |
| Smart Playback | Tag, Motion, Alarm, Event-based |
| Alarm Functions | Snapshot, Log, Email, Audio Trigger |
| Construction | Durable Metal Chassis |
| Dimensions | 440mm x 415.6mm x 76mm |
| Weight | 4.25kg (Net), 6.35kg (Gross) |
| Warranty | Total 1 Year warranty by Takeplus Computer |
Description
| Category | Specification | |
|---|---|---|
| Brand | Dahua | |
| Model | NVR4432-EI | |
| System Processor | Industrial-grade Embedded Processor | |
| Operating System | Embedded Linux | |
| IP Camera Input | 32 Channels | |
| Audio Input/Output | 1-ch RCA In / 1-ch RCA Out | |
| Display Output | 1x HDMI, 1x VGA | |
| Max Output Resolution | Up to 16MP | |
| USB Ports | 1x Front USB 2.0, 1x Rear USB 3.0 | |
| RS232/RS485 | 1x RS232 (Debug), 1x RS485 (PTZ Control) | |
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG | |
| Audio Compression | G.711a, G.711u, PCM, G726 | |
| Recording Resolutions | From CIF up to 16MP | |
| Decoding Capacity (AI Off) | 32-ch 720p, 16-ch 1080p, 8-ch 4MP, 6-ch 5MP, 4-ch 6MP, 4-ch 8MP, 2-ch 12MP, 2-ch 16MP | |
| Decoding Capacity (AI On) | 32-ch D1, 16-ch 720p, 12-ch 1080p, 6-ch 4MP, 4-ch 5MP, 3-ch 6MP, 3-ch 8MP, 2-ch 12MP, 1-ch 16MP | |
| Multi-screen Display | 1st Screen: 1/4/8/9/16/25/36; 2nd Screen: 1/4/8/9/16 | |
| Playback Channel | Up to 16 channels | |
| Playback Modes | Instant, General, Event, Smart, Tag | |
| Backup Options | USB Device & Network | |
| Storage Capacity | 4 SATA Ports, up to 16TB per HDD (64TB Total) | |
| Video Detection Alarms | Motion, Privacy Masking, Video Loss, PIR, Scene Change, External Alarm | |
| Intelligent Detection | Face Detection, Face Recognition, Perimeter Protection, SMD Plus, People Counting, Heat Map, Stereo Analysis | |
| Alarm Output Actions | Record, Snapshot, Audio, Preset, Buzzer, Log, Email | |
| Network Ports | 2x RJ-45 (10/100/1000 Mbps) | |
| Supported Protocols | HTTP, HTTPS, TCP/IP, IPv4/6, UPnP, SNMP, RTSP, SMTP, DHCP, DNS, FTP, PPPoE, DDNS, NTP, Alarm Server, P2P | |
| Browser Support | Chrome, Firefox, IE9+ | |
| Mobile App | Android, iOS | |
| Interoperability | ONVIF 22.06 (Profiles T, S, G), CGI, SDK | |
| Operating Temp | –10°C to +55°C | |
| Storage Temp | –20°C to +60°C | |
| Power Supply | 100V–240V AC, 50–60Hz | |
| Power Consumption | ≤10W (Without HDD) | |
| Dimensions (W×D×H) | 440.0 mm × 415.6 mm × 76.0 mm | |
| Net Weight | 4.25 kg | |
| Gross Weight | 6.35 kg | |
| Warranty |
(No warranty for physical/burn damage) |
