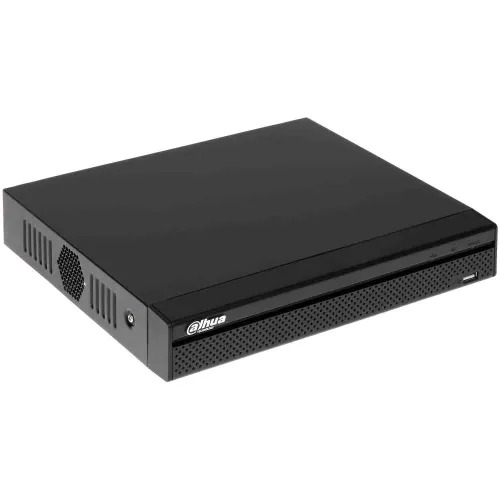

Dahua NVR4432-EI 32 Channel WizSense Network Video Recorder (NVR)
Original price was: 37,500.00৳ .34,500.00৳ Current price is: 34,500.00৳ .
Dahua-NVR4832-EI 32CH 2U 8HDDs WizSense Network Video Recorder
46,500.00৳
| Feature | Description |
|---|---|
| AI Smart Functions | Face Detection, Recognition, ANPR, SMD+, People Counting, Heat Map |
| Face DB | 10 DBs, 20K images |
| License Plate DB | 20K Plates with allow/block lists |
| AI Performance | 8-channel face recog. (camera), 1-channel (recorder) |
| High Decoding Capacity | Supports multiple streams up to 16MP |
| Large Storage | 8 SATA, 16TB each (128TB max) |
| Dual Gigabit LAN | Ensures stable network redundancy |
| USB & Alarm I/O | 3x USB, 16 alarm in / 4 alarm out |
| Web/Mobile/Browser | iOS, Android, Chrome, Firefox, IE9+ |
| Build Quality | Rack Mountable Metal Body |
| Ideal For | AI-based surveillance, commercial & enterprise-grade setups |
| Warranty | Total 1 Year warranty by Takeplus Computer |
Description
| Category | Details |
|---|---|
| Model | Dahua NVR4832-EI |
| Main Processor | Industrial-grade embedded processor |
| Operating System | Embedded Linux |
| Interfaces | Web, Local GUI |
| Access Channel | 32 IP Camera Inputs |
| Max Resolution | Up to 16MP |
| AI by Recorder | Face Detection, Face Recognition, Perimeter Protection, SMD Plus |
| AI by Camera Support | Face Detection, Face Recognition, Perimeter Protection, SMD Plus, ANPR, People Counting, Stereo Analysis, Heat Map |
| Perimeter Detection (Recorder) | 2 Channels, 10 IVS rules/channel |
| Perimeter Detection (Camera) | All Channels (8 targets/sec) |
| Face Detection (Recorder) | 1 Channel, 12 face images/sec |
| Face Detection (Camera) | All Channels (8 targets/sec) |
| Face Recognition (Recorder) | 8-ch FD (by camera) + FR (by recorder), 12 images/sec1-ch FD + FR (by recorder), video stream: 12 images/sec |
| Face Recognition (Camera) | All Channels (8 targets/sec) |
| Face Database | 10 DBs, 20,000 images total, 2.5 GBFields: name, gender, DOB, address, ID type/number, nationality |
| SMD Plus by Recorder | 4 Channels – Human/vehicle filtering |
| SMD Plus by Camera | All Channels (16 targets/sec) |
| ANPR by Camera | All Channels (4 targets/sec) |
| License Plate Database | 20,000 plates, Allowlist/Blocklist |
| Network Bandwidth | AI Off: 256 Mbps (in/out/recording)AI On: 180 Mbps (in/out/recording) |
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
| Audio Compression | G.711a, G.711u, PCM, G726 |
| Video Output | 1 HDMI, 1 VGA (simultaneous/heterogeneous configurable) |
| Max Video Output Resolution | HDMI: 4K@3840x2160VGA: 1080p@1920×1080 |
| Multi-screen Display | 1st Screen: 1/4/8/9/16/25/362nd Screen: 1/4/8/9/16 |
| Decoding Capability (AI Off) | 2-ch 16MP, 2-ch 12MP, 4-ch 8MP, 4-ch 6MP, 6-ch 5MP, 8-ch 4MP, 16-ch 1080p, 32-ch 720p |
| Decoding Capability (AI On) | 1-ch 16MP, 2-ch 12MP, 3-ch 8MP, 3-ch 6MP, 4-ch 5MP, 6-ch 4MP, 12-ch 1080p, 16-ch 720p, 32-ch D1 |
| Playback Channels | Up to 16 |
| Playback Modes | Instant, General, Event, Tag, Smart |
| Backup Options | USB device and network |
| Disk Group | Supported |
| Internal Storage | 8 SATA ports, up to 16TB per drive (128TB total) |
| Alarm Inputs/Outputs | 16 inputs / 4 outputs |
| USB Ports | 3 (2 front USB 2.0, 1 rear USB 3.0) |
| RS232 / RS485 | 1 / 1 (PTZ, multi-protocol support) |
| Network Ports | 2x RJ-45 (10/100/1000 Mbps) |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4/6, UPnP, SNMP, RTSP, SMTP, DHCP, DNS, FTP, P2P, DDNS, IP Search, Alarm Server |
| Mobile App | Android, iOS |
| Browser Access | Chrome, Firefox, IE9+ |
| Interoperability | ONVIF 22.06 (Profiles T/S/G), CGI, SDK |
| General Alarm Triggers | Motion, Masking, Video Loss, Scene Change, PIR, External Alarm |
| Anomaly Alarms | Disk Error/Full, Camera Disconnect, IP/MAC Conflict, Login Lock, Cybersecurity Exception |
| Intelligent Alarm | Face Detection/Recognition, SMD Plus, People Counting, Heat Map |
| Alarm Actions (Linkage) | Record, Snapshot, Audio, Preset, Buzzer, Log, Email, External Trigger |
| Power Supply | 100–240 VAC, 50–60 Hz |
| Power Consumption | <10W (without HDD) |
| Operating Temperature | –10°C to +55°C |
| Storage Temperature | –20°C to +60°C |
| Humidity | 10%–93% RH (non-condensing) |
| Mounting | Rack/desktop |
| Dimensions (W×D×H) | 440.0 × 458.4 × 94.9 mm |
| Packaging Dimensions | 570.0 × 570.0 × 226.0 mm |
| Net/Gross Weight | 6.34 kg / 8.80 kg |
| Certifications | FCC, CE-EMC, CE-LVD |
| Warranty |
(No warranty for physical/burn damage) |
