DAHUA XVR1B16H 16 Channel Penta-brid 4M-N/1080P Cooper 1U Digital Video Recorder
Original price was: 12,500.00৳ .10,500.00৳ Current price is: 10,500.00৳ .

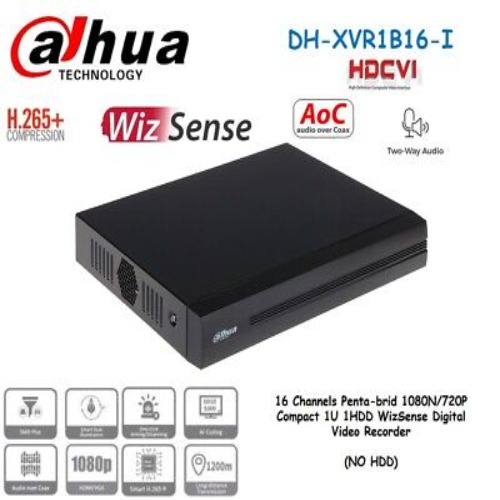

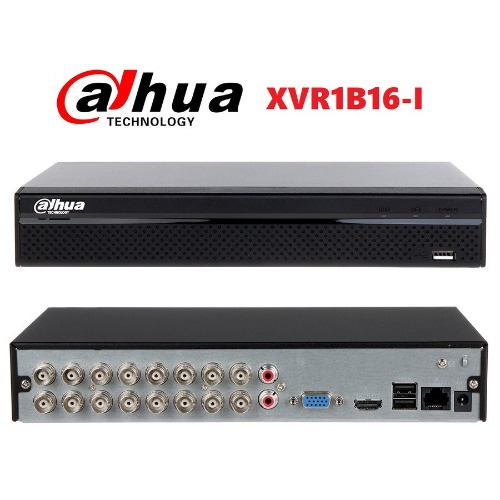

Dahua XVR1B16-I 16-Channel Penta-brid Compact Digital Video Recorder
5,300.00৳
| Key Feature | Description | |
|---|---|---|
| Channels | 16+2 channel input, supports up to 6MP cameras | |
| Display Output | HDMI & VGA up to 1080p | |
| Video Compression | AI Coding, H.265+, H.265, H.264+, H.264 | |
| Playback Modes | 1/4/9/16 channel playback with digital zoom | |
| Storage Capacity | 1 SATA port, up to 6 TB HDD | |
| Smart Detection | Motion Detection, Video Loss, Tampering, Snapshot alerts | |
| Mobile Support | Works with iPhone, iPad, Android | |
| Network Functions | Full protocol support: IPv4/6, RTSP, DDNS, FTP, SMTP, P2P, etc. | |
| Recording Control | Manual, Scheduled, Motion-triggered, Alarm | |
| Backup Methods | USB device and Network | |
| Construction | Compact 1U size with under 10W power consumption | |
| Warranty |
|
Description
| Feature | Details | |
|---|---|---|
| System Processor | Embedded processor | |
| Operating System | Embedded Linux | |
| IP Camera Input | 16+2 channels (each up to 6MP) | |
| Two-Way Audio | Reuse audio in/out, RCA | |
| Display Interface | 1 HDMI, 1 VGA | |
| Display Resolutions | 1920×1080, 1280×1024, 1280×720 | |
| Multi-Screen Display | 1/4/8/9/16 (with or without IP extension mode) | |
| OSD Features | Camera title, Time, Video loss, Lock, Motion detection, Recording | |
| Video Compression | AI Coding, H.265+, H.265, H.264+, H.264 | |
| Recording Resolutions | 1080N, 720p, 960H, D1, HD1, BCIF, CIF, QCIF | |
| Recording Rate | Main: 1st Ch: 1080N/720p (1–25/30 fps), others up to 15 fps;Sub: CIF/QCIF (1–7 fps) | |
| Bit Rate | 32 kbps – 4096 kbps per channel | |
| Recording Modes | Manual, Scheduled, Motion Detection (MD), Alarm, Stop | |
| Pre/Post Record Time | Pre: 1–30s, Post: 10–300s, Interval: 1–60 min (default 60 min) | |
| Video Detection | Motion Detection, Video Loss, Tampering, Diagnosis | |
| Alarm Input/Output | Not Available | |
| Playback Support | 1/4/9/16 Sync Playback, Digital Zoom, Full Playback Control, Exact Search | |
| Backup Modes | USB Device, Network | |
| Third Party Camera Support | Dahua, AXIS, Bosch, Honeywell, Canon, Samsung, Sony, CP Plus, etc. | |
| Network Interface | 1 RJ-45 Port (100 Mbps) | |
| Network Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, P2P, FTP, DDNS, SMTP, DHCP, etc. | |
| Max User Access | 128 Users | |
| Mobile Access | iPhone, iPad, Android | |
| ONVIF Support | ONVIF 16.12, CGI Conformant | |
| Internal Storage | 1 SATA port (up to 6 TB) | |
| USB Ports | 2x USB 2.0 | |
| RS232/RS485 | Not Available | |
| Power Supply | DC 12V / 2A | |
| Power Consumption | < 10W | |
| Operating Temp | -10°C to +45°C (10%–90% RH) | |
| Storage Temp | -20°C to +70°C (0%–90% RH) | |
| Dimensions (L×W×H) | 260 × 231.4 × 47.6 mm (10.24″ × 9.11″ × 1.87″) | |
| Net / Gross Weight | 0.89 kg / 1.42 kg | |
| Warranty |
(No warranty for physical/burn damage) |
