-16%

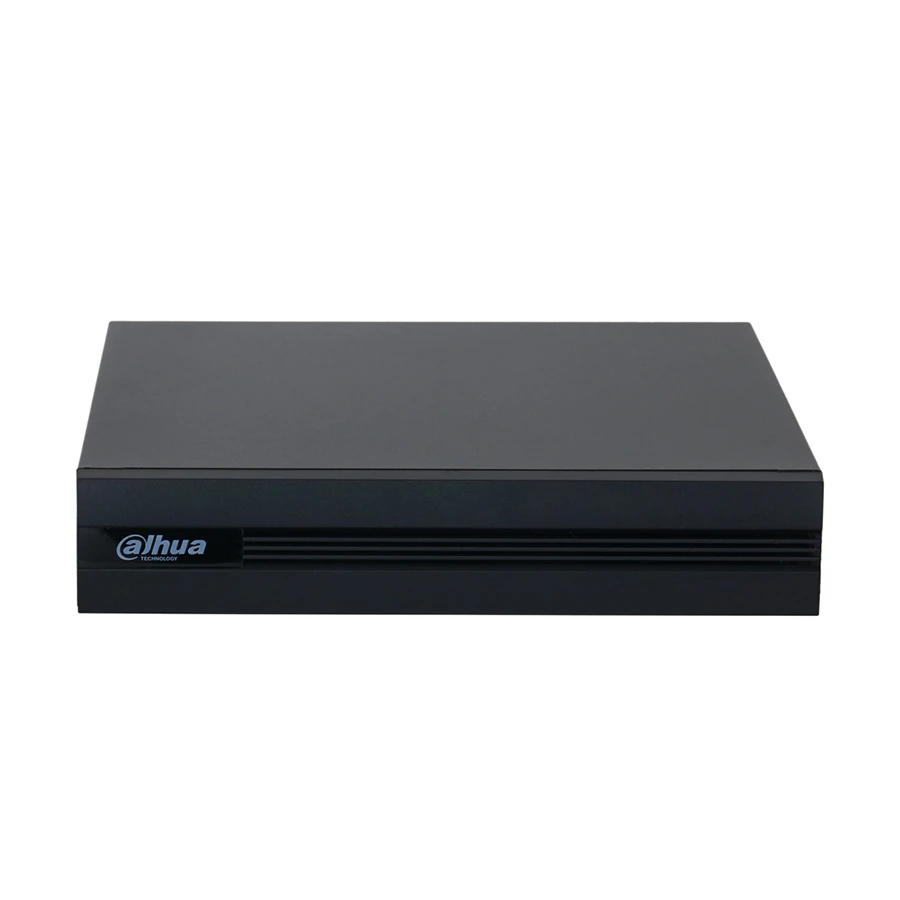

DAHUA XVR1B16H 16 Channel Penta-brid 4M-N/1080P Cooper 1U Digital Video Recorder
Original price was: 12,500.00৳ .10,500.00৳ Current price is: 10,500.00৳ .
| Key Feature | Description | |
|---|---|---|
| Channel Capacity | 16 Analog + 8 IP (total 24 channels) | |
| Resolution Support | Up to 5M-N for analog, 6MP for IP | |
| Compression | Advanced H.265+/H.264+ for efficient storage | |
| Two-Way Audio | Supported via RCA | |
| Storage | 1 SATA, up to 6TB | |
| Backup Options | USB 2.0, USB 3.0, Network | |
| Video Analytics | Motion Detection, Tamper Detection, Smart Search | |
| Smart Recording | IVS Features, Video Push, FTP, Buzzer, Email Alerts | |
| Mobile Compatibility | Yes (via P2P/Cloud apps) | |
| Power Efficient | Consumes less than 10W without HDD | |
| Warranty |
|
Description
| Feature | Details | |
|---|---|---|
| Product Type | 16 Channel Penta-brid Cooper 1U Digital Video Recorder | |
| Supported Camera Types | HDCVI, AHD, TVI, CVBS, IP | |
| Video Compression | H.265+, H.265, H.264+, H.264 | |
| Supported Resolutions | 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF | |
| Max IP Camera Input | 24 Channels (16+8), up to 6MP each | |
| Max Incoming Bandwidth | 96 Mbps | |
| Audio In/Out | 1/1 RCA (2-way via audio reuse) | |
| Analog Camera Input | 16 BNC Channels | |
| Supported Analog Formats | HDCVI (up to 5MP), AHD, TVI, CVBS (PAL/NTSC) | |
| Record Rate | 5M-N (1st & 2nd ch, 1 |
|
| Sub Stream | CIF/QCIF (1~15fps) | |
| Audio Compression | AAC (1st ch), G.711A, G.711U, PCM | |
| Audio Sample Rate | 8KHz, 16-bit per channel | |
| Bit Rates | Video: 32Kbps~6144Kbps per channel; Audio: 64Kbps per channel | |
| Recording Modes | Manual, Schedule, MD, Alarm, Stop | |
| Recording Interval | 1–60 min (default 60 min), Pre: 1–30 sec, Post: 10–300 sec | |
| Playback | Smart Search, IVS, Snapshot, PTZ, Tour, Digital Zoom, etc. | |
| Video Detection | Motion Detection, Video Loss, Tampering, Diagnosis | |
| Trigger Events | Recording, Email, PTZ, Video Push, FTP, Snapshot, Buzzer | |
| Backup Mode | USB Device / Network | |
| USB Ports | 1 × USB 2.0, 1 × USB 3.0 | |
| HDD Support | 1 SATA port, up to 6TB | |
| Network Protocols | HTTP, HTTPS, TCP/IP, IPv4/6, FTP, SMTP, DDNS, RTSP, P2P, etc. | |
| Third-Party Support | Arecont Vision, AXIS, Bosch, CP Plus, Samsung, Sony, Vivotek, etc. | |
| Power Supply | DC 12V / 2A | |
| Power Consumption | < 10W (without HDD) | |
| Warranty |
(No warranty for physical/burn damage) |
