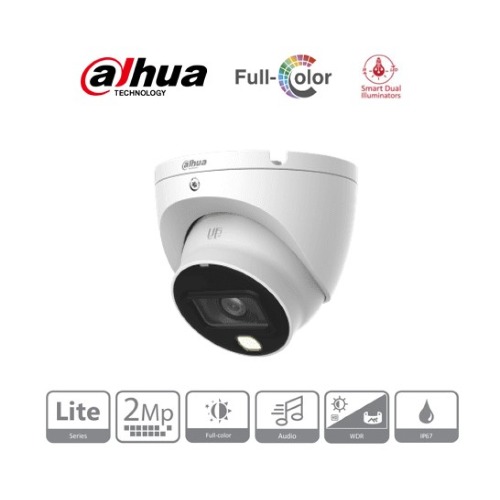

DH-HAC-HDW1200TLM-IL-A 2MP Smart Dual Light HDCVI Fixed-focal Eyeball Camera
2,500.00৳
| Key Feature | Description |
|---|---|
| Resolution | 2MP Full HD (1920×1080) |
| Lens Options | 2.8 mm / 3.6 mm, Fixed |
| IR + White Light Range | 20 meters each |
| DORI Coverage | Up to 50.9m Detect (3.6 mm lens) |
| IR Mode Types | Smart IR&WL / IR Only / White Light Only |
| Video Compatibility | CVI, TVI, AHD, CVBS |
| Audio | Built-in microphone |
| Build Material | Metal casing |
| Protection | IP67 Weatherproof |
| Mounting Options | Wall, Ceiling, Pole Mount |
| Certifications | CE, FCC, UL Approved |
| Dimensions | φ94.0 mm × 85.7 mm |
| Weight | 0.30 kg (Net) |
| Power & Consumption | 12V DC, Max 2.6 W |
| Warranty | Total 1 Year warranty by Takeplus Computer |
Description
| Specification | Details |
|---|---|
| Brand | Dahua |
| Model | DH-HAC-HDW1200TLM-IL-A (PAL) / DHW1200TLMN-IL-A (NTSC) |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Scanning System | Progressive |
| Shutter Speed | PAL: 1/25 s–1/100,000 s; NTSC: 1/30 s–1/100,000 s |
| Min. Illumination | 0.01 lux@F2.0 (Color); 0.001 lux@F2.0 (B/W); 0 lux (IR on) |
| S/N Ratio | > 65 dB |
| IR Distance | 20 m IR / 20 m Warm Light |
| IR Control | Auto |
| Illumination Units | 1 IR Light + 1 Warm Light |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° |
| Lens Type | Fixed-focal |
| Auto Focus | No |
| Lens Mount | M12 |
| Focal Length | 2.8 mm / 3.6 mm |
| Max. Aperture | F2.0 |
| Field of View | 2.8 mm: H102°, V60°, D129°; 3.6 mm: H83°, V48°, D105° |
| Close Focus Distance | 2.8 mm: 0.5 m; 3.6 mm: 0.7 m |
| DORI (2.8 mm) | Detect: 41.1 m, Observe: 16.5 m, Recognize: 8.3 m, Identify: 4.1 m |
| DORI (3.6 mm) | Detect: 50.9 m, Observe: 20.3 m, Recognize: 10.2 m, Identify: 5.1 m |
| Frame Rates | 1080p@25/30fps (CVI/AHD/TVI); 960H (CVBS) |
| Video Outputs | CVI/TVI/AHD/CVBS via BNC |
| Resolution Support | 1080p, 960H |
| Day/Night Mode | Auto(ICR)/Color/B/W |
| BLC/WDR | BLC, HLC, DWDR |
| White Balance | Auto / Area-based |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Illumination Modes | Smart IR&WL, IR Mode, WL Mode |
| Mirror | Yes |
| Privacy Masking | On/Off (8 zones) |
| Audio Input | 1 channel (built-in mic) |
| Power Supply | 12V DC ±30% |
| Power Consumption | Max 2.6 W |
| Operating Temp | –40 °C to +60 °C |
| Humidity | <95% RH, non-condensing |
| Storage Temp | –40 °C to +60 °C |
| Ingress Protection | IP67 |
| Body Material | Metal |
| Dimensions | φ94.0 mm × 85.7 mm (φ3.70″ × 3.37″) |
| Net/Gross Weight | 0.30 kg / 0.42 kg |
| Mounting Options | Wall, Ceiling, Vertical Pole |
| Certifications | CE, FCC, UL |
| Accessories (Optional) | PFA106, PFA13A-E, PFB220C, PFB205W-E, PFA152-E, PFM321D, PFM904 |
| Warranty |
(No warranty for physical/burn damage) |
