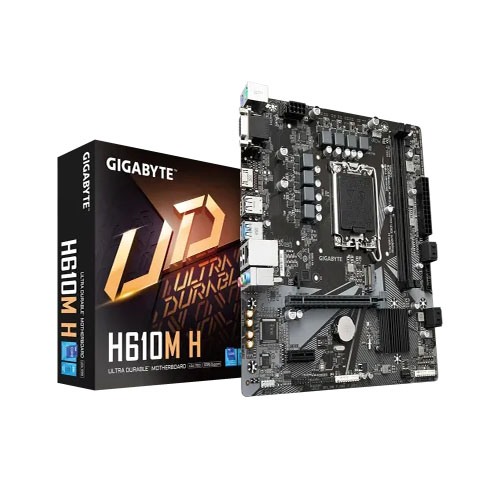

Gigabyte H610M H V2 DDR5
Original price was: 11,830.00৳ .11,200.00৳ Current price is: 11,200.00৳ .
Model: H610M H
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 2x DDR5, Max 64GB 4800(OC)
Graphics Output: 1x HDMI, 1x D-Sub port
Features: Realtek GbE LAN chip (1 Gbps/100 Mbps)
| Category | Specification |
|---|---|
| Basic Information | GIGABYTE H610M H DDR5 mATX Motherboard |
| Supported CPU | LGA1700 socket: 14th, 13th, and 12th Gen Intel Core / Pentium Gold / Celeron |
| Cache Support | L3 cache varies with CPU |
| Chipset | Intel H610 Express Chipset |
| BIOS | 1 x 128 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX (23.0cm x 21.5cm) |
| Audio | Realtek Audio CODEC, HD Audio, 2/4/5.1/7.1-channel |
| Expansion Slots | – 1 x PCIe x16 (CPU, PCIe 4.0) – 1 x PCIe x1 (Chipset, PCIe 3.0) |
| Memory Type | DDR5 |
| Memory Slots | 2 DIMM Slots |
| Supported Memory Speeds | DDR5 7600(O.C.) to 4000 MT/s |
| Memory Architecture | Dual channel |
| Memory Compatibility | ECC Un-buffered DIMM (non-ECC mode), non-ECC Un-buffered DIMM, XMP modules |
| Max Memory Capacity | 64 GB (32 GB per DIMM) |
| Integrated Graphics | Intel HD Graphics (depends on CPU) |
| Video Outputs | – 1 x D-Sub (max 1920×1200@60Hz) – 1 x HDMI (max 4096×2160@60Hz, HDMI 2.1, HDCP 2.3) |
| USB Ports | – 2 x USB 3.2 Gen 1 (back) – 2 x USB 3.2 Gen 1 (internal) – 4 x USB 2.0 (back) – 4 x USB 2.0 (internal via headers) |
| LAN | Realtek GbE LAN (1 Gbps / 100 Mbps) |
| Storage Support | – 1 x M.2 (Socket 3, PCIe 3.0 x4/x2 SSD) – 4 x SATA 6Gb/s |
| Audio Ports | – 1 x front panel audio header – 2 x rear audio jacks |
| Internal Power Connectors | – 1 x 24-pin ATX – 1 x 8-pin ATX 12V |
| Fan Headers | – 1 x CPU fan – 2 x system fan |
| Other Internal Ports | – 1 x RGB LED strip header – 1 x front panel header – 1 x USB 3.2 Gen 1 header – 2 x USB 2.0 headers – 1 x serial port header – 1 x Clear CMOS jumper |
| TPM Header | 1 x Trusted Platform Module header (For GC-TPM2.0 SPI module) |
| Special Features | – Support for APP Center – Q-Flash – Xpress Install |
| Bundled Software | – Norton Internet Security (OEM) – LAN bandwidth management software |
| Warranty | No warranty |
| Retail Description | High-performance mATX motherboard with DDR5, PCIe 4.0, HDMI 2.1, Anti-Sulfur Resistors, Smart Fan 6, GbE LAN, and immersive audio. |
| Price in Bangladesh | ৳11,200 Takeplus Computer |
