-4%
GIGABYTE B760M D3HP WIFI6 DDR5
Original price was: 18,800.00৳ .17,899.00৳ Current price is: 17,899.00৳ .

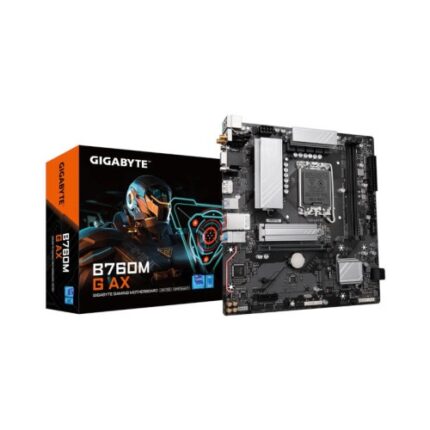

GIGABYTE B760M G AX DDR5
Original price was: 20,000.00৳ .18,999.00৳ Current price is: 18,999.00৳ .

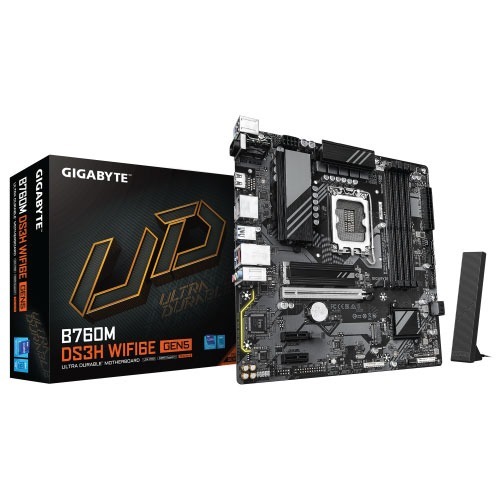

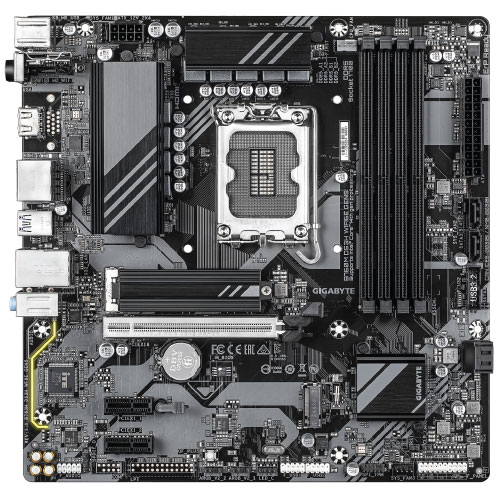

GIGABYTE INTEL B760M DS3H WF6E GEN5 DDR5 Motherboard
Original price was: 20,000.00৳ .19,199.00৳ Current price is: 19,199.00৳ .
| Feature | Details |
|---|---|
| CPU | Intel 14th / 13th / 12th Gen Core™, Pentium Gold, Celeron |
| Memory | DDR5 Dual Channel, 4 DIMMs, up to 256GB, XMP Ready, Overclockable |
| Graphics | HDMI 2.1 + 2 × DisplayPort 1.2, Triple-display |
| Audio | Realtek HD Audio, 8-channel, Audio Noise Guard, High-End Capacitors |
| Networking | 2.5GbE LAN, Wi-Fi 6E, Bluetooth 5.3 |
| Storage | 2 × PCIe 4.0 M.2, 4 × SATA 6Gb/s, RAID 0/1/5/10 |
| Expansion | 1 × PCIe 5.0 x16, 2 × PCIe 3.0 x1 |
| USB | Type-C 10Gb/s, 3 × USB 3.2 Gen1, 6 × USB 2.0/1.1 |
| Cooling | Smart Fan 6, Dual curve, Fan Stop, High-current support |
| Special Features | Q-Flash Plus, Smart Backup, GIGABYTE Control Center, EZ-Latch |
| Form Factor | Micro ATX, 24.4 × 24.4 cm |
| Warranty | Total 3 Years Warranty by Takeplus Computer |
Description
| Component | Specification |
|---|---|
| Model | GIGABYTE B760M (DDR5, Wi-Fi 6E) |
| CPU Support | LGA1700 socket Intel 14th / 13th / 12th Gen Core™, Pentium Gold, Celeron L3 cache varies by CPU |
| Chipset | Intel B760 Express |
| Memory | 4 × DDR5 DIMM slots, up to 256 GB (64 GB per DIMM) DDR5 5600/5200/4800/4400 MT/s (i9/i7 14th/13th Gen) DDR5 4800/4400 MT/s (i5/i3 13th Gen & 12th Gen Core™, Pentium Gold, Celeron) ECC UDIMM (non-ECC mode), non-ECC UDIMM, XMP Ready |
| Graphics | Intel HD Graphics 1 × HDMI 2.1 (4096×2160@60Hz) 2 × DisplayPort 1.2 (4096×2304@60Hz) Triple-display support |
| Audio | Realtek HD Audio CODEC 2/4/5.1/7.1-channel Audio Noise Guard, High-End Audio Capacitors S/PDIF Out |
| Networking | Realtek 2.5GbE LAN Intel Wi-Fi 6E AX210, Bluetooth 5.3 2.4/5/6 GHz bands, 11ax 160MHz standard |
| Expansion Slots | 1 × PCIe 5.0 x16 (CPU) 2 × PCIe 3.0 x1 (Chipset) |
| Storage | 2 × M.2 PCIe 4.0 x4/x2 (CPU + Chipset) 4 × SATA 6Gb/s RAID 0/1/5/10 support |
| USB Ports | Back: 1 × USB Type-C (USB 3.2 Gen 2), 3 × USB 3.2 Gen1, 2 × USB 2.0/1.1 Internal: 2 × USB 3.2 Gen1, 4 × USB 2.0/1.1 |
| Internal I/O | 24-pin ATX, 8-pin ATX 12V CPU + 3 system fan headers 2 × Addressable RGB Gen2 + 1 × RGB LED header 2 × M.2 connectors, 4 × SATA Front panel + audio headers, USB headers TPM, S/PDIF Out headers Q-Flash Plus button, Reset jumper, Clear CMOS jumper |

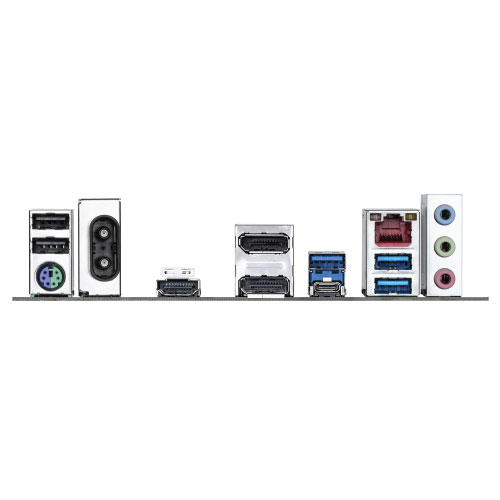

| Back Panel I/O | 2 × USB 2.0/1.1 1 × PS/2 keyboard/mouse 2 × antenna connectors (Wi-Fi 6E) 1 × HDMI, 2 × DisplayPort 3 × USB 3.2 Gen1 1 × USB Type-C (USB 3.2 Gen2) 1 × RJ-45 LAN 3 × audio jacks |
| Cooling & Fan Control | Smart Fan 6: PWM/DC fan & pump support, high current (12V x 2A), multiple temperature sensors, dual curve modes, Fan Stop, BIOS fan profile support |
| BIOS & Software | 128 Mbit AMI UEFI BIOS Q-Flash, Q-Flash Plus, Smart Backup GIGABYTE Control Center (GCC) |
| Form Factor | Micro ATX, 24.4 × 24.4 cm |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Bundled Software | Norton Internet Security (OEM) |
| Warranty | 2 Years officially Warranty + 1 Additional Year Warranty from Takeplus Computer (No Warranty for External Damages) |
