MSI PRO H610M-G WIFI DDR4 m-ATX Motherboard
Original price was: 14,320.00৳ .13,199.00৳ Current price is: 13,199.00৳ .

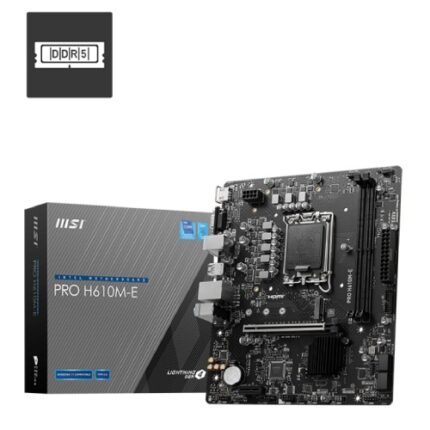

MSI PRO H610M-E mATX Motherboard
Original price was: 11,399.00৳ .10,699.00৳ Current price is: 10,699.00৳ .

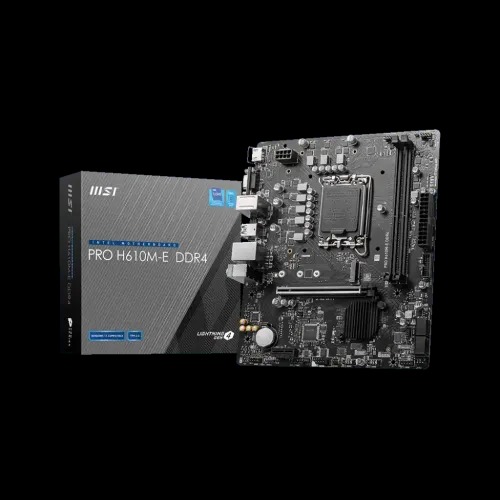

MSI PRO H610M-E DDR4 mATX Motherboard
Original price was: 10,699.00৳ .9,999.00৳ Current price is: 9,999.00৳ .
| Feature | Details |
|---|---|
| CPU Support | Intel 14th/13th/12th Gen, LGA 1700 |
| Chipset | Intel H610 |
| Memory | DDR4, Dual Channel, Up to 64GB |
| PCIe Support | 1x PCIe 4.0 x16, 1x PCIe 3.0 x1 |
| Graphics Output | HDMI 1.4 (4K@30Hz), VGA |
| LAN | Realtek 1Gbps Ethernet |
| Storage | 1x M.2 PCIe 3.0 x4 Slot, SATA Support |
| USB Support | USB 3.2 Gen 1, USB 2.0 (Multiple Ports via headers) |
| Audio | 7.1 Channel HD Audio with Realtek ALC897 |
| RGB & Debug | 1x 4-pin RGB Header, EZ Debug LED |
| Form Factor | mATX (Compact Build Friendly) |
| Special Features | Core Boost, Audio Boost, Memory Boost, Steel Armor |
| Warranty | 3 Years – Manufacturer-supported coverage by Takeplus Computer |
Description
| Category | Specification |
|---|---|
| Supported CPU | Supports 14th/13th/12th Gen Intel Core, Pentium Gold & Celeron Processors (LGA 1700) |
| Chipset | Intel H610 Chipset |
| Form Factor | mATX (9.3 x 7.9 in / 23.6 x 20 cm) |
| Audio | Realtek ALC897 Codec, 7.1-Channel High-Definition Audio |
| Expansion Slots | 1x PCIe x16 (PCIe 4.0), 1x PCIe x1 (PCIe 3.0) |
| Memory Type | DDR4 (Dual Channel, Non-ECC, Unbuffered) |
| Memory Slots | 2 Slots |
| Max Memory Support | 64GB, Supports 2133/2666/3200 MHz (JEDEC & POR) |
| Integrated Graphics Support | Depends on CPU, Max Res: 4K@30Hz (HDMI), 2048×1536@50Hz (VGA) |
| Graphics Ports | 1x HDMI 1.4 with HDR, 1x VGA |
| USB Ports | 1x USB 3.2 Gen 1 header (adds 2 USB 3.2 ports), 2x USB 2.0 connectors (adds 4 USB 2.0 ports) |
| LAN | 1x Realtek RTL8111H Gigabit LAN |
| Storage Interface | 1x M.2 (Key M, PCIe 3.0 x4, 2242/2260/2280), SATA supported |
| Audio Headers | 1x Front Panel Audio Connector |
| Internal Power Connectors | 1x 24-pin ATX, 1x 8-pin +12V |
| Fan Connectors | 1x CPU Fan (4-pin), 2x System Fan (4-pin) |
| Internal Headers | Front Panel Audio, System Panel, Serial Port, Chassis Intrusion, TPM, Clear CMOS jumper |
| RGB Header | 1x 4-pin RGB LED connector |
| Diagnostic Features | 4x EZ Debug LED |
| Special Features | Core Boost, Memory Boost, Audio Boost, Steel Armor |
| Build Quality | Reinforced slots, stable power delivery, EMI shielded |
| Warranty | 2 Year officially Warranty + 1 Additional Year from Takeplus Computer (No Warranty for Physical Damages, Box Must Required for Claim) |
