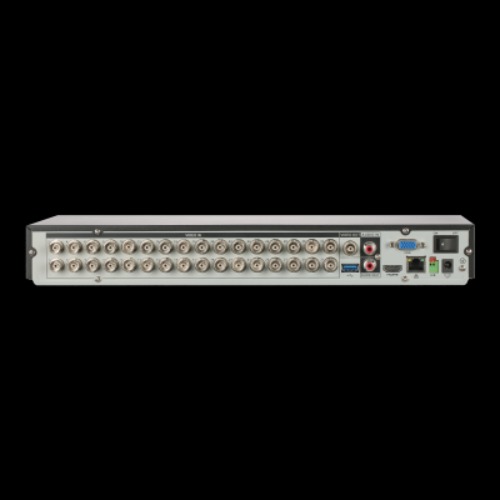

XVR-5232AN-I3 32CH Penta-brid 5MP Value/1080P 1U 2HDDs WizSense Digital Video Recorder
28,000.00৳
| Feature | Description | |
|---|---|---|
| Input Channels | 32 analog BNC + up to 48 IP (16 native + 32 convertible) | |
| AI Features | SMD Plus, Face Detection/Recognition, Perimeter Protection, QuickPick 2.0 | |
| Max Resolution | 5MP (analog); 4K HDMI output | |
| Storage | 2× SATA up to 16TB per HDD | |
| AI Video Analytics | Brightness, overexposure, contrast, color cast, defocus detection | |
| Playback | 1/4/9/16 channel simultaneous | |
| Video Compression | AI Coding, H.265+, H.264+ | |
| Mobile Access | iOS and Android compatible | |
| Backup Options | USB and Network | |
| Display Modes | Main Screen: 36 max, Sub Screen: 16 max | |
| Build Quality | Industrial-grade processor, CE & FCC certified | |
| Warranty |
|
Description
| Category | Description | |
|---|---|---|
| Brand | Dahua | |
| Model | DHI-XVR4232AN | |
| Type | Penta-brid AI Digital Video Recorder | |
| Operating System | Embedded Linux | |
| Main Processor | Industrial-grade processor | |
| Operating Interface | Web, Local GUI | |
| Analog Camera Input | 32 BNC ports (HDCVI/AHD/TVI/CVBS auto-detect) | |
| IP Camera Input | Up to 48 IP channels (16 native + 32 with analog-to-IP conversion) | |
| Camera Resolution Support | Up to 5MP CVI/TVI/AHD; 1080p & 720p (varied fps) | |
| SMD Plus | 32 channels by recorder, 48 channels by camera | |
| AI Video Quality Analytics | 32 channels | |
| Perimeter Protection | 2 channels (Advanced Mode), 8 channels (General Mode) | |
| Face Detection | 2 channels, up to 12 face images/s per channel | |
| Face Attributes | 6 attributes | |
| Face Database | 10 databases, up to 10,000 images | |
| Face Recognition | 2 channels | |
| QuickPick 2.0 AI | 2 channels | |
| Scene Change Detection | 1 channel | |
| Irregular Black Block Masking | 1 channel | |
| Dual-stream Support | Yes | |
| Video Compression | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264 | |
| Audio Compression | G.711a, G.711u, PCM | |
| Audio Input | 1 RCA + 32-channel coaxial audio | |
| Audio Output | 1 RCA | |
| Two-way Audio | Yes (shared with first channel input) | |
| Video Outputs | 1 HDMI (up to 4K), 1 VGA, 1 CVBS | |
| Display Modes | Main Screen: 1/4/8/9/16/25/36, Sub Screen: 1/4/8/9/16 | |
| Playback Modes | Instant, general, event, tag, smart | |
| Record Modes | Manual, schedule, alarm, motion, intelligent, POS | |
| Backup Methods | USB device and network | |
| Disk Interface | 2× SATA, up to 16TB each (temperature dependent) | |
| USB Ports | 1× USB 2.0 (Front), 1× USB 3.0 (Rear) | |
| RS-485 | 1 port | |
| Network Interface | 1 RJ45 (10/100/1000 Mbps) | |
| Network Protocols | IPv4/IPv6, HTTP/HTTPS, TCP/IP, P2P, FTP, SNMP, etc. | |
| Third-party Camera Access | ONVIF, Panasonic, Sony, Hanwha, Axis, Arecont | |
| Mobile App Support | iOS, Android | |
| Power Supply | 12V DC, 5A | |
| Power Consumption | <16W (without HDD) | |
| Dimensions (W×D×H) | 375 × 289.6 × 53 mm | |
| Net Weight | 1.90 kg | |
| Operating Temperature | –10°C to +55°C | |
| Certifications | CE, FCC | |
| Country of Origin | China | |
| Warranty |
(No warranty for physical/burn damage) |
