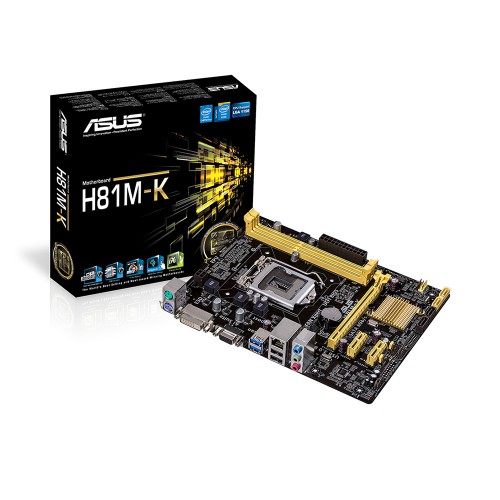

Asus H81M-K 4th Gen Motherboard
Original price was: 9,980.00৳ .9,300.00৳ Current price is: 9,300.00৳ .
| Feature | Details |
|---|---|
| Model | H81M-K |
| CPU Support | Intel Socket 1150 for 4th Generation Core i7/i5/i3/Pentium/Celeron Processors |
| Memory Slots | 2 x DIMM |
| Maximum Memory | 16GB |
| Memory Type | DDR3 Non-ECC, Un-buffered Memory |
| UEFI BIOS | Yes, with new UEFI BIOS for improved performance and usability |
| USB 3.0 Boost | Yes, with UASP (USB Attached SCSI Protocol) support for faster USB transfer speeds |
| AI Suite 3 | One-stop access to innovative ASUS features for system monitoring, tweaking, and optimization |
Description
| Category | Specification |
|---|---|
| Model | Asus H81M-K |
| Form Factor | Micro-ATX (uATX) |
| Dimensions | 22.6 cm x 17.5 cm (8.9 inch x 6.9 inch) |
| Processor Support | |
|---|---|
| Supported Socket | Intel LGA1150 |
| Supported CPUs | 4th Gen Intel Core i7, Core i5, Core i3, Pentium, Celeron |
| CPU Technology Support | Intel 22nm, Intel Turbo Boost Technology 2.0 |
| Chipset | Intel H81 |
| BIOS | |
|---|---|
| BIOS Type | 64 Mb Flash ROM, UEFI AMI BIOS |
| Features | PnP, DMI 2.0, WfM 2.0, SM BIOS 2.7, ACPI 2.0a |
| Additional Features | Multi-language BIOS, ASUS EZ Flash 2, CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen, F3 Shortcut Functions, ASUS DRAM SPD Information |
| Memory | |
|---|---|
| Memory Type | DDR3 (Non-ECC, Un-buffered) |
| Slots | 2 x DIMM |
| Supported Speeds | 1600 / 1333 / 1066 MHz |
| Max Memory | 16 GB |
| Channel Architecture | Dual Channel |
| XMP Support | Yes (Intel Extreme Memory Profile) |
| Graphics | |
|---|---|
| Integrated Graphics | Yes (via supported CPUs) |
| Output Ports | 1 x DVI-D, 1 x D-Sub (VGA) |
| Max Resolution (DVI-D) | 1920 x 1200 @ 60 Hz |
| Max Resolution (VGA) | 1920 x 1200 @ 60 Hz |
| Graphics Technologies | Intel InTru 3D, Quick Sync Video, Clear Video HD, Insider |
| Max Shared Memory | 1024 MB |
| Expansion Slots | |
|---|---|
| PCI Express x16 | 1 |
| PCI Express x1 | 2 (PCIe 2.0) |
| PCI | 1 |
| Audio | |
|---|---|
| Audio Codec | Realtek ALC887/897 |
| Channels | 8-Channel High Definition Audio |
| Features | Front Panel Jack-retasking, Up to 24-bit/192kHz playback |
| LAN | |
|---|---|
| Controller | Realtek 8111G Gigabit LAN Controller |
| Storage | |
|---|---|
| SATA 6Gb/s Ports | 2 (Yellow) |
| SATA 3Gb/s Ports | 2 (Dark Brown) |
| Storage Features | Intel Rapid Start Technology, Intel Smart Connect Technology |
| Rear I/O Ports | |
|---|---|
| USB 3.1 Gen 1 | 2 (Back panel, blue) |
| USB 2.0 | 2 (Back panel, black) |
| D-Sub (VGA) | 1 |
| DVI-D | 1 |
| LAN (RJ-45) | 1 |
| Audio Jacks | 3 |
| Internal I/O Connectors | |
|---|---|
| CPU Fan Header | 1 x 4-pin |
| Chassis Fan Header | 1 x 4-pin |
| USB 2.0 Headers | 2 (Support 4 additional USB 2.0 ports) |
| SATA 6Gb/s Connectors | 2 |
| SATA 3Gb/s Connectors | 2 |
| S/PDIF Out Header | 1 |
| 24-pin EATX Power | 1 |
| 4-pin ATX 12V Power | 1 |
| Front Panel Connector | 1 |
| Front Panel Audio Header | 1 (AAFP) |
| Internal Speaker Connector | 1 |
| Clear CMOS Jumper | 1 |
| Special Features | |
|---|---|
| ASUS EPU | Energy Processing Unit (EPU) |
| Exclusive Features | GPU Boost, AI Suite 3, Ai Charger, Anti-Surge Protection, USB 3.0 Boost, Disk Unlocker |
| BIOS Utility | ASUS UEFI BIOS EZ Mode with GUI |
| Network Utility | Network iControl |
| Thermal Solution | Fanless heatsink, ASUS Fan Xpert |
| DIY Features | CrashFree BIOS 3, EZ Flash 2 |
| Q-Design Features | ASUS Q-Slot |
| Warranty | |
|---|---|
| Manufacturer Warranty | 3 Years |
| Price (Bangladesh) | ৳9,300 |
