ASUS B760M-AYW WIFI D4 mATX Motherboard
19,425.00৳
Asus PRIME B760M-K mATX Motherboard
17,430.00৳
Asus PRIME B760M-F mATX Motherboard
16,280.00৳
| Key Feature | Quick Insight |
|---|---|
| CPU Compatibility | Intel 14th, 13th, 12th Gen Core Series |
| Memory Performance | 96GB DDR5 up to 8000MHz (OC) |
| Storage Interface | Dual PCIe 4.0 M.2 + 4 SATA 6Gb/s, RAID Support |
| Display Output | HDMI 1.4, Supports 4K@30Hz |
| Networking | Realtek 1Gb Ethernet |
| Audio System | Realtek 7.1 HD Audio, Audio Shielding |
| USB Ports | 6 Rear USB (4 x USB 5Gbps, 2 x USB 2.0)5 Front USB Ports |
| RGB & Aesthetics | Aura Sync, Addressable Gen 2 Headers |
| Durability Features | 5X Protection III, Stainless-Steel I/O |
| Ideal Use Case | Modern DDR5 compact builds, gaming setups, AI-powered workstations |
Description
| Feature Category | Description |
|---|---|

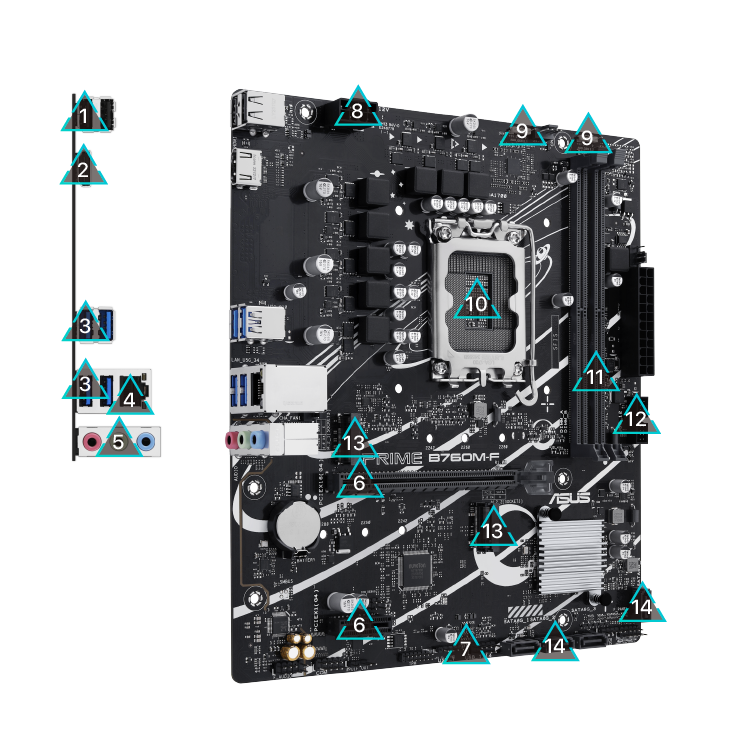

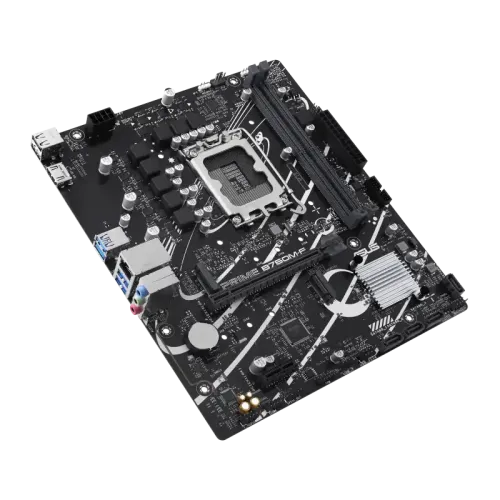

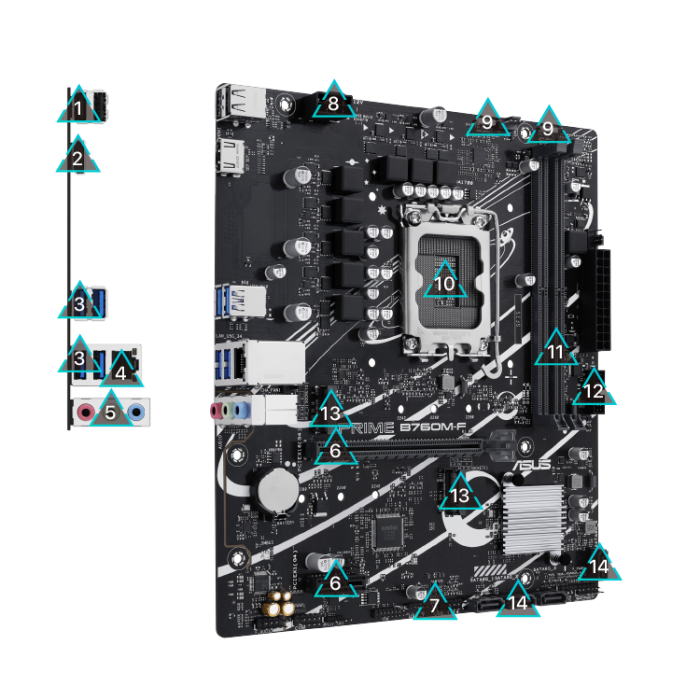

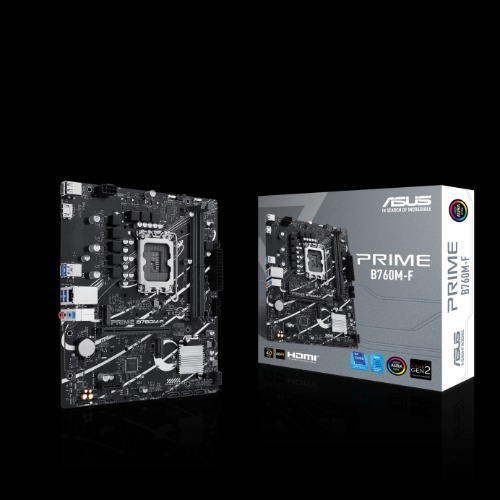

| Model | ASUS PRIME B760M-F |
| Socket | Intel LGA1700 |
| Supported CPU | Intel 14th / 13th / 12th Gen Core, Pentium Gold, Celeron |
| Chipset | Intel B760 |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | micro-ATX (24.4 cm x 21.1 cm) |

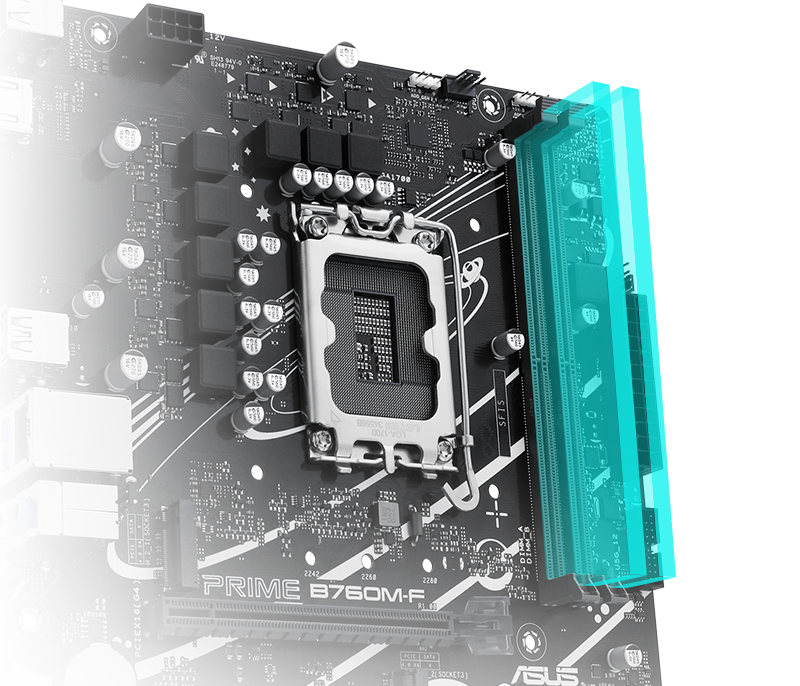

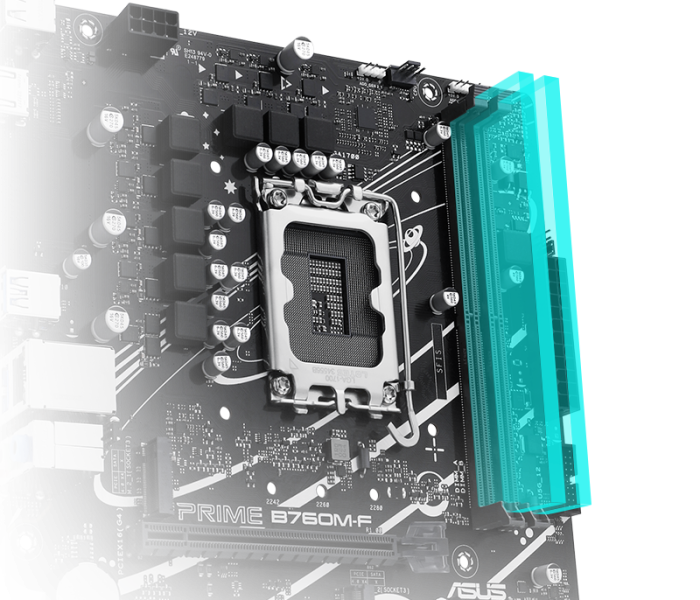

| Memory Support | 2 x DDR5 DIMM, up to 96GBUp to 8000MHz (OC)Dual Channel, XMP Support |
| Expansion Slots | 1 x PCIe 4.0 x16 (CPU)1 x PCIe 4.0 x1 (Chipset) |
| Storage Interface | 2 x M.2 PCIe 4.0 x4 (2242/2260/2280)4 x SATA 6Gb/sRAID 0/1/5/10 |
| Graphics Output | 1 x HDMI (Supports 4K@30Hz via HDMI 1.4) |
| Network | 1 x Realtek 1Gb Ethernet |
| Audio System | Realtek 7.1 Surround HD Audio CODEC24-bit/192kHz playbackAudio Shielding, Premium Capacitors |
| USB Ports (Rear) | 4 x USB 5Gbps (Type-A)2 x USB 2.0 (Type-A) |
| USB Ports (Front) | 1 x USB 5Gbps header (2 ports)2 x USB 2.0 headers (3 ports) |
| Cooling Support | 1 x 4-pin CPU Fan Header2 x 4-pin Chassis Fan Headers |
| RGB & Lighting Headers | 2 x Addressable Gen 2 headers |
| Internal I/O Headers | 1 x 24-pin ATX Power1 x 8-pin CPU Power1 x COM, 1 x Clear CMOS1 x TPM, 1 x F_AUDIO1 x Speaker, 1 x S/PDIF1 x 10-1 pin System Panel |
| TPM Support | 1 x SPI TPM Header (14-1 pin) |
| Special Features | ASUS 5X Protection III (DIGI+ VRM, LANGuard, etc.)Q-Design, ProCool, Aura Sync |
| Thermal Solution | Aluminum Heatsink Design, Fan Xpert 2+ |
| Software Bundle | Armoury Crate, AI Suite 3, CPU-Z, WinRAR, Norton 360 Trial |
| Warranty | 2 Year Official Warranty (1 year parts/labor, no on-site) + 1 Additional Year from Takeplus Computer |
| Price in Bangladesh | ৳15,000 Takeplus ComputerPrice in Bangladesh৳15,000 (Star Tech) |
