Asus PRIME B760M-K D4 mATX Motherboard
14,700.00৳
Asus PRIME B760M-F mATX Motherboard
16,280.00৳
ASUS B760M-AYW WIFI D4 mATX Motherboard
19,425.00৳
| Key Feature | Quick Insight |
|---|---|
| CPU Compatibility | Intel 14th, 13th, 12th Gen Core Series |
| Memory Performance | 64GB DDR4 up to 5333MHz (OC) |
| Storage Interface | Dual PCIe 4.0 M.2 + 4 SATA 6Gb/s, RAID Support |
| Display Output | HDMI 2.1, Supports 4K@60Hz |
| Networking | Realtek 2.5Gb LAN + Wi-Fi 6 + Bluetooth 5.2 |
| Audio System | Realtek 7.1 HD Audio, Premium Capacitors |
| USB Ports | 6 Rear USB (4 x USB 3.2 Gen 1, 2 x USB 2.0)4 Front USB |
| RGB & Aesthetics | Aura Sync, Gen 2 Addressable Headers |
| Durability Features | 5X Protection III, Stainless-Steel Back I/O |
| Ideal Use Case | High-performance compact builds with wireless networking |
Description
| Feature Category | Description |
|---|---|
| Model | ASUS B760M-AYW WIFI D4 |
| Socket | Intel LGA1700 |
| Supported CPU | Intel 14th / 13th / 12th Gen Core, Pentium Gold, Celeron |
| Chipset | Intel B760 |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | mATX (24.4 cm x 21.1 cm) |
| Memory Support | 2 x DDR4 DIMM, up to 64GB5333MHz (OC) maxDual Channel, XMP Support |
| Expansion Slots | 1 x PCIe 4.0 x16 (CPU)2 x PCIe 4.0 x1 (Chipset) |
| Storage Interface | 2 x M.2 PCIe 4.0 x4 (2242/2260/2280)4 x SATA 6Gb/sRAID 0/1/5/10 |
| Graphics Output | 1 x HDMI (up to 4K@60Hz with HDMI 2.1) |

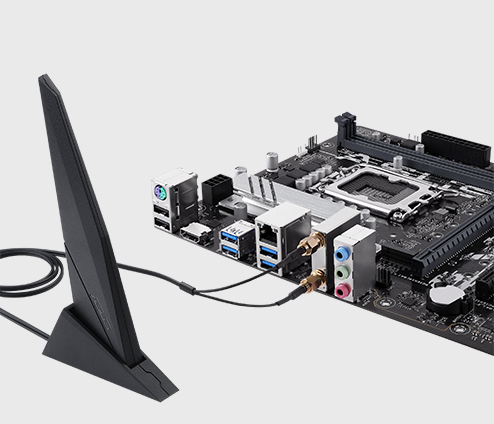

| Network | 1 x Realtek 2.5Gb EthernetWi-Fi 6 (802.11 a/b/g/n/ac/ax)Bluetooth 5.2 |
| Audio | Realtek 7.1 Surround HD Audio CODEC24-bit/192kHz playbackAudio Shielding, Premium Capacitors |
| USB Ports (Rear) | 4 x USB 3.2 Gen 1 (Type-A)2 x USB 2.0 (Type-A) |
| USB Ports (Front) | 1 x USB 3.2 Gen 1 header (2 ports)1 x USB 2.0 header (2 ports) |
| Cooling Support | 1 x 4-pin CPU Fan Header1 x 4-pin Chassis Fan Header |
| RGB & Lighting Headers | 2 x Addressable Gen 2 headers1 x Aura RGB header |
| Internal I/O Headers | 1 x 24-pin ATX Power1 x 8-pin CPU Power1 x COM, 1 x Clear CMOS1 x TPM, 1 x AAFP1 x Speaker, 1 x S/PDIF1 x 10-1 pin System Panel |
| Special Features | ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, etc.)Q-Design, ProCool, Armoury Crate, Fan Xpert |
| Software Bundle | Armoury Crate, AI Suite 3, MyASUS, CPU-Z, WinRAR, Norton 360 (Trial) |
| Warranty | 2 Year Official Warranty (1 year parts/labor, no on-site) + 1 Additional Year from Takeplus Computer |
| Price in Bangladesh | ৳19,000 Takeplus Computer |
