| Key Feature | Quick Insight |
|---|---|
| CPU Compatibility | Intel 14th, 13th, 12th Gen Core Series |
| Memory Performance | 64GB DDR5 up to 8000MHz (OC) |
| Storage Interface | Dual PCIe 4.0 M.2 + 4 SATA 6Gb/s, RAID Support |
| Display Output | HDMI + VGA (Ideal for dual-display setups) |
| Networking | Realtek 2.5Gb Ethernet |
| Audio System | Realtek 7.1 HD Audio, Audio Shielding |
| USB Ports | 6 Rear USB (4 x USB 3.2 Gen 1, 2 x USB 2.0)5 Front USB Ports |
| RGB & Aesthetics | Aura Sync, 2x Gen 2 ARGB + Aura RGB Header |
| Durability Features | 5X Protection III, Stainless-Steel I/O |
| Ideal Use Case | High-speed DDR5 compact builds, gaming/workstation builds with strong Ethernet performance |
Description
| Feature Category | Description |
|---|---|

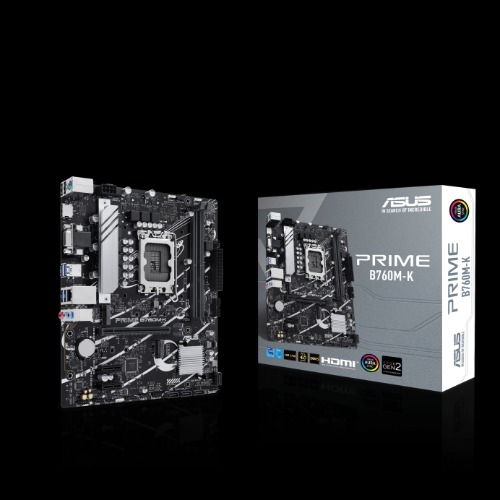

| Model | ASUS PRIME B760M-K |
| Socket | Intel LGA1700 |
| Supported CPU | Intel 14th / 13th / 12th Gen Core, Pentium Gold, Celeron |
| Chipset | Intel B760 |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | micro-ATX (24.4 cm x 21.1 cm) |
| Memory Support | 2 x DDR5 DIMM, up to 64GBUp to 8000MHz (OC)Dual Channel, XMP Support |
| Expansion Slots | 1 x PCIe 4.0 x16 (CPU)2 x PCIe 4.0 x1 (Chipset) |
| Storage Interface | 2 x M.2 PCIe 4.0 x4 (2242/2260/2280)4 x SATA 6Gb/sRAID 0/1/5/10 |
| Graphics Output | 1 x HDMI (4K@30Hz)1 x VGA |
| Network | 1 x Realtek 2.5Gb Ethernet |
| Audio System | Realtek 7.1 HD Audio CODEC24-bit/192kHz playbackAudio Shielding, Premium Capacitors |
| USB Ports (Rear) | 4 x USB 3.2 Gen 1 (Type-A)2 x USB 2.0 (Type-A) |
| USB Ports (Front) | 1 x USB 3.2 Gen 1 header (2 ports)2 x USB 2.0 headers (3 ports) |
| Cooling Support | 1 x 4-pin CPU Fan Header1 x 4-pin Chassis Fan Header |
| RGB & Lighting Headers | 2 x Addressable Gen 2 headers1 x Aura RGB header |
| Internal I/O Headers | 1 x 24-pin ATX Power1 x 8-pin CPU Power1 x COM, 1 x Clear CMOS1 x TPM, 1 x AAFP1 x Speaker, 1 x S/PDIF1 x 10-1 pin System Panel |
| TPM Support | 1 x SPI TPM Header (14-1 pin) |
| Special Features | ASUS 5X Protection III (DIGI+ VRM, LANGuard, etc.)Q-Design, ProCool, Aura Sync |
| Thermal Solution | VRM Heatsink, Fan Xpert |
| Software Bundle | Armoury Crate, AI Suite 3, CPU-Z, WinRAR, Norton 360 Trial |
| Warranty | 2 Year Official Warranty (1 year parts/labor, no on-site) + 1 Additional Year from Takeplus Computer |
| Price in Bangladesh | ৳16,800 Takeplus Computer |
