Asus PRIME H610M-CS D4 mATX Motherboard
11,760.00৳
ASUS Pro B660M-C D4-CSM mATX Motherboard
16,800.00৳

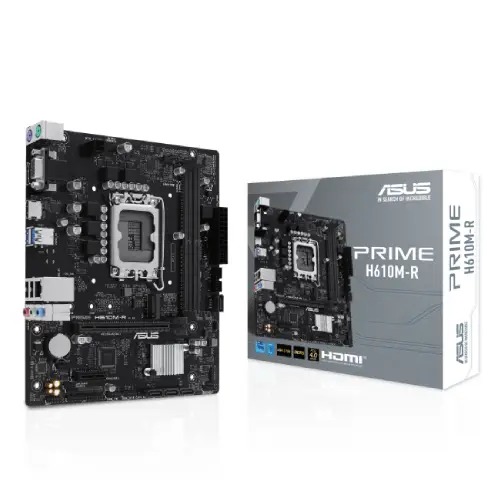

ASUS PRIME H610M-R DDR5 LGA1700 mATX Motherboard
11,655.00৳
| Key Feature | Quick Insight |
|---|---|
| CPU Compatibility | Supports Intel 12th, 13th, 14th Gen (LGA1700) |
| Memory Support | DDR5 up to 96GB, Dual Channel |
| Storage Interface | 1 x M.2 PCIe 3.0 x4, 4 x SATA 6Gb/s |
| Expansion Ready | PCIe 4.0 x16 slot for graphics cards |
| Display Outputs | HDMI, DisplayPort, VGA |
| Connectivity | USB 3.2 Gen 1, USB 2.0, Realtek 1Gb LAN |
| Audio Quality | Realtek 7.1 HD Audio, Premium Caps |
| Durability Features | ASUS 5X Protection III, Anti-moisture Coating |
| Cooling Solution | Optimized aluminum heatsink, dual fan support |
| Best For | Budget DDR5 Builds, Office PCs, Light Gaming |
Description
| Feature Category | Description |
|---|---|
| Model | ASUS PRIME H610M-R DDR5 |
| Socket | Intel LGA1700 |
| Supported CPU | 14th/13th/12th Gen Intel Core, Pentium Gold, Celeron (up to 65W) |
| Chipset | Intel H610 |
| Form Factor | Micro-ATX (22.6 cm x 19.5 cm) |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS |
| Memory Support | 2 x DDR5 DIMM, up to 96GB, Dual ChannelDDR5 5600/5400/5200/5000/4800 MHz |
| Expansion Slots | 1 x PCIe 4.0 x16 (for CPU)1 x PCIe 3.0 x1 |
| Storage Interface | 1 x M.2 PCIe 3.0 x4 (2242/2260/2280)4 x SATA 6Gb/s |
| Graphics Output | 1 x HDMI (up to 4K@60Hz)1 x DisplayPort1 x VGA |
| Audio | Realtek 7.1 Surround HD Audio CODECPremium capacitors, shielding, dedicated layers |
| USB Ports (Rear) | 2 x USB 3.2 Gen 1 Type-A2 x USB 2.0 Type-A |
| USB Ports (Front) | 1 x USB 3.2 Gen 1 header (2 ports)2 x USB 2.0 headers (4 ports) |
| LAN | 1 x Realtek 1Gb Ethernet |
| Internal Headers | 1 x 24-pin Main Power1 x 4-pin CPU Power1 x CPU Fan1 x Chassis Fan1 x TPM (14-1 pin)1 x Speaker1 x Clear CMOS1 x LPT, 1 x COM1 x System Panel |

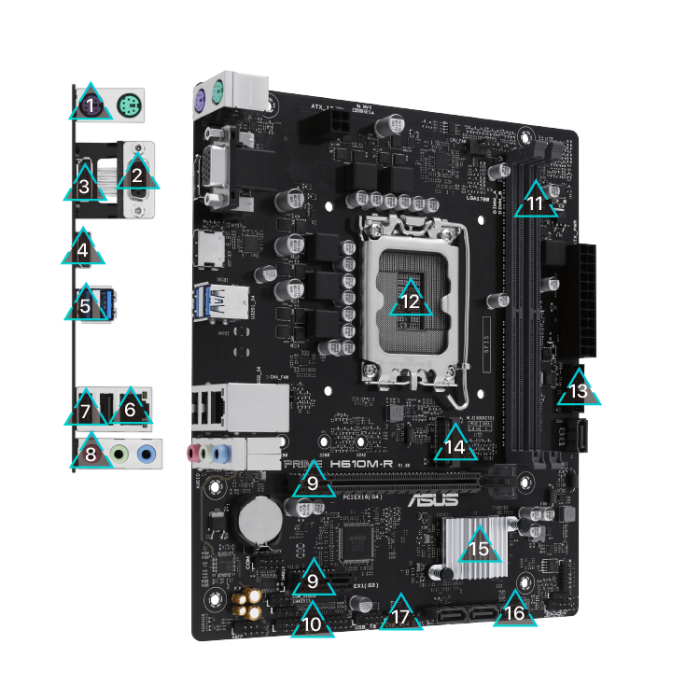

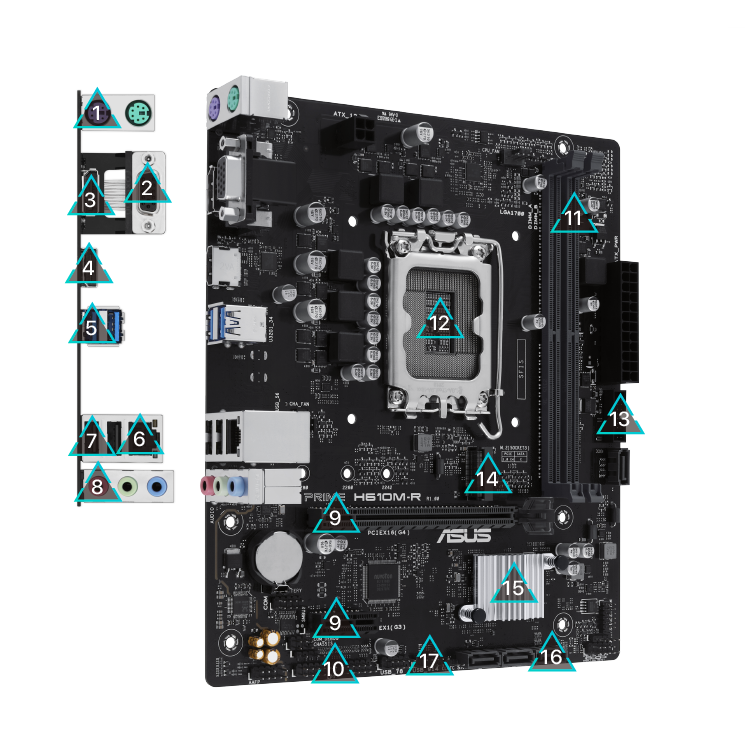

| Back Panel I/O | 2 x USB 3.2 Gen 1, 2 x USB 2.01 x DisplayPort, 1 x HDMI, 1 x VGA1 x LAN3 x Audio Jacks1 x PS/2 Keyboard + Mouse |
| Special Features | ASUS 5X Protection IIIASUS Q-Design (Q-LED, Q-DIMM, Q-Slot)Moisture-Resistant PCBAluminum Heatsink |
| Software Bundle | Armoury Crate, AI Suite 3, ASUS CPU-Z, PC Cleaner, Norton (Trial), WinRAR |

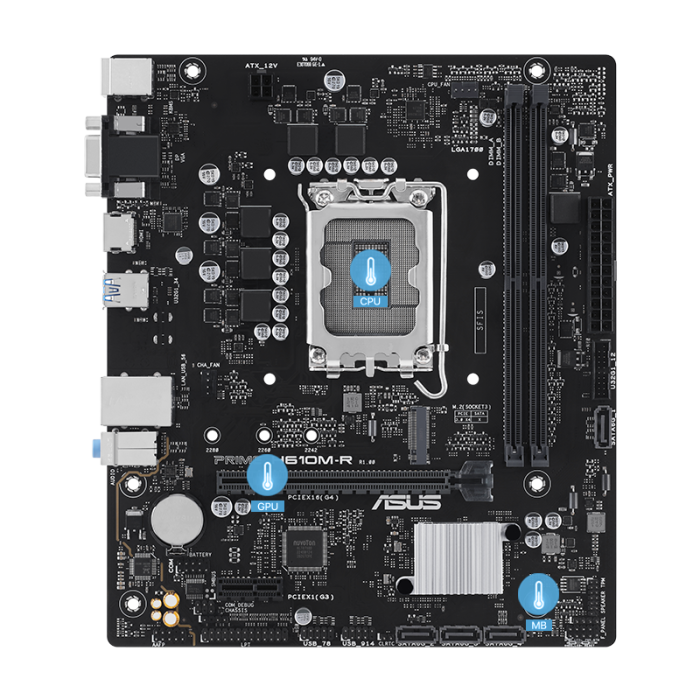

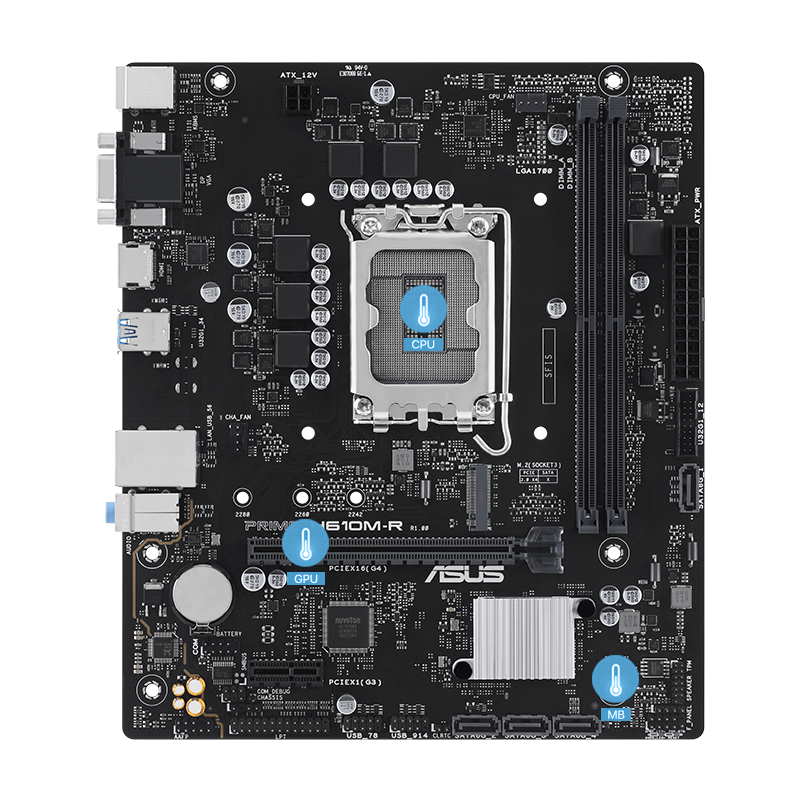

| Cooling Support | Dual fan headers & optimized heatsink |
| Warranty | 2 Year Official Warranty (1 year parts/labor, no on-site) + 1 Additional Year from Takeplus Computer |
| Price in Bangladesh | ৳11,200 Takeplus Computer |
