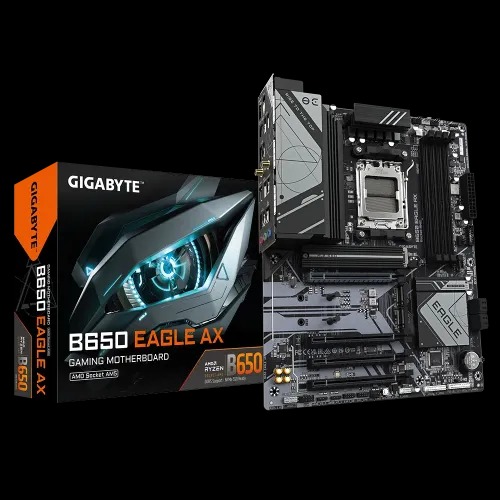

GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard
28,709.00৳

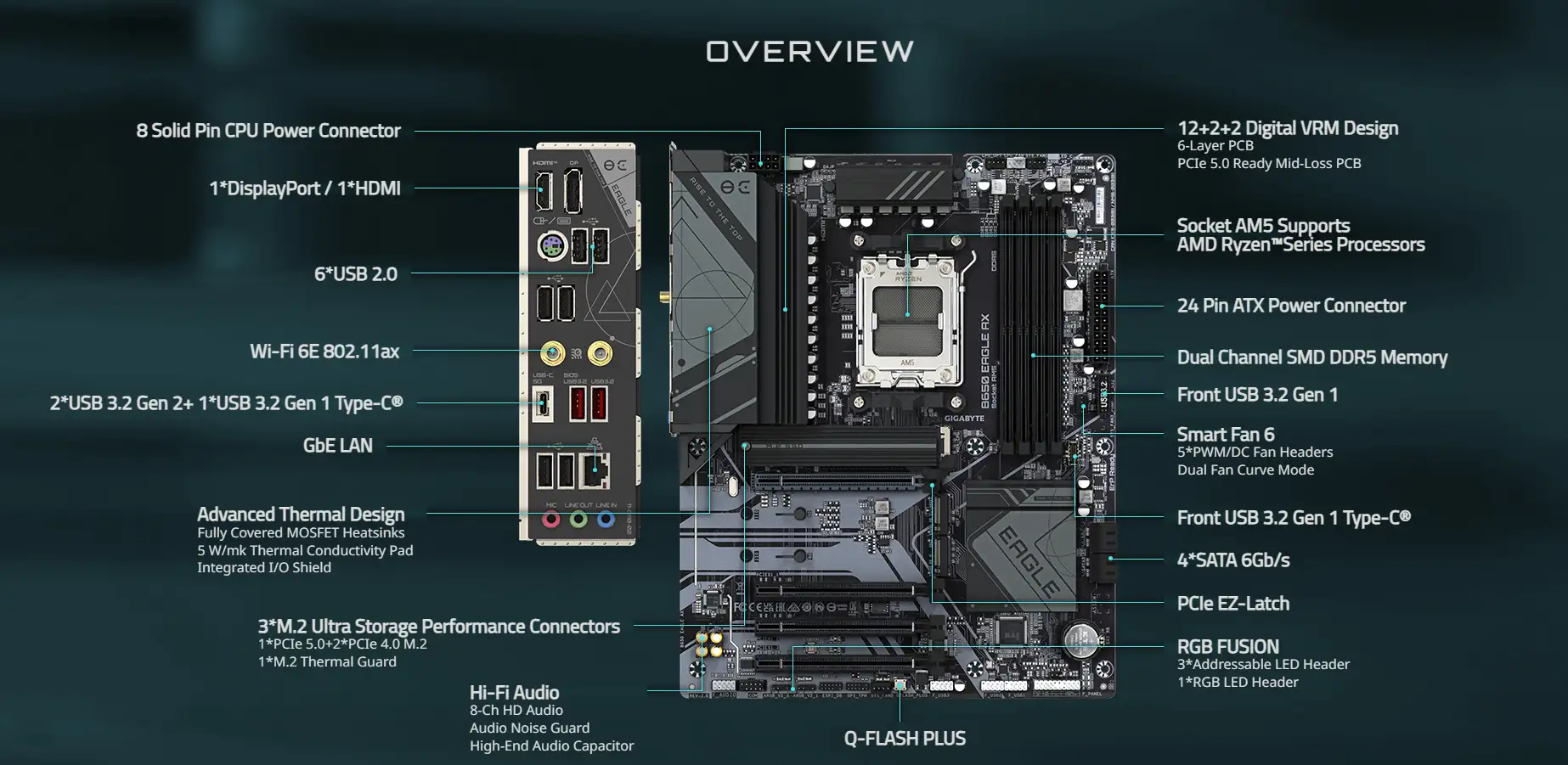

| Feature | Description |
|---|---|
| Next-Gen CPU Support | Ryzen 7000 & 8000 Series, AM5 Platform |
| PCIe 5.0 M.2 | Ultra-fast Gen5 x4 slot for 25110 NVMe SSDs |
| Advanced Memory | DDR5 up to 7600MHz (OC), EXPO/XMP, max 192GB |

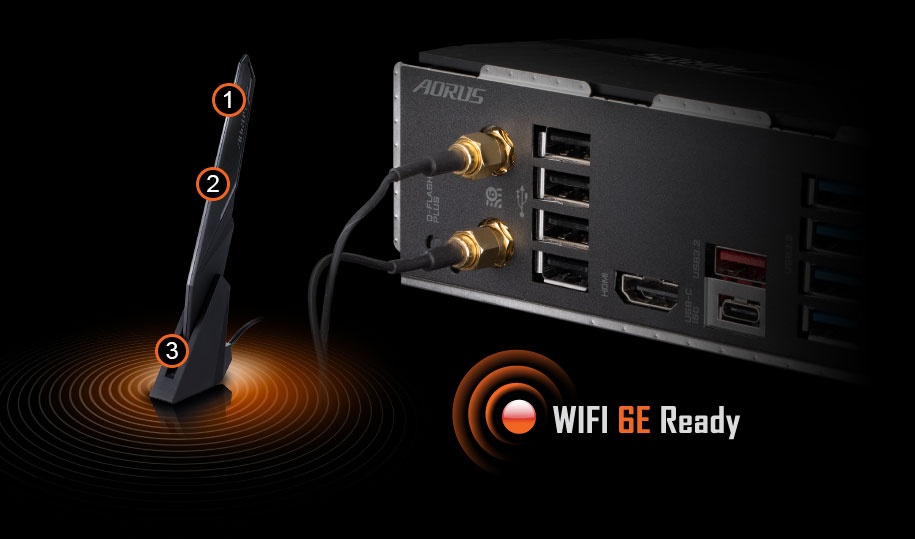

| Wi-Fi 6E + BT 5.3 | Realtek Wi-Fi 6E module with triple band support and advanced Bluetooth |
| EZ-Latch PCIe Slot | Screwless GPU slot for quick install and maintenance |
| High-Res Display Support | HDMI 2.1 and DisplayPort 1.4 with up to 144Hz output |
| Rich USB Options | USB-C Gen1, USB 3.2 Gen2, plus 10+ USB 2.0 for full peripheral coverage |
| Thermal Management | Smart Fan 6 with fan stop, pump headers, and multiple sensors |
| BIOS Without CPU | Q-Flash Plus allows BIOS updates without CPU/RAM/GPU |
| Solid Warranty | Backed by GIGABYTE’s 2-Year Official Warranty + 1-Year Additional from Takeplus Computer |
Description
| Category | Details |
|---|---|
| CPU Support | AMD Socket AM5 — Ryzen 8000/7000 Series Processors |
| Chipset | AMD B650 |
| Form Factor | ATX (30.5cm x 24.4cm) |
| BIOS | AMI UEFI BIOS, 256 Mbit, Q-Flash & Q-Flash Plus Supported |
| Memory Support | DDR5 up to 192GB, up to 7600MHz (OC), 4 DIMM Slots, Dual Channel, EXPO & XMP Support |
| Graphics Output | 1x HDMI 2.1 (4096×2160@60Hz), 1x DisplayPort 1.4 (3840×2160@144Hz) |
| Expansion Slots | 1x PCIe 4.0 x16 (CPU), 2x PCIe 3.0 x1 (CPU), 1x PCIe 3.0 x1 (Chipset) |
| M.2 Slots | 3x M.2 (1x PCIe 5.0, 2x PCIe 4.0), types: 25110/22110/2280/2580 |
| SATA Ports | 4x SATA 6Gb/s |
| RAID Support | RAID 0/1/10 for both NVMe and SATA |
| LAN & Wireless | Realtek 1GbE LAN + Wi-Fi 6E (RTL8852CE) + Bluetooth 5.3 |
| USB Ports (Rear) | 2x USB 3.2 Gen 2 (Type-A), 1x USB-C Gen 1, 6x USB 2.0 |
| USB Ports (Internal) | 1x USB-C Gen 1 Header, 1x USB 3.2 Gen 1 Header, 3x USB 2.0 Headers |
| Cooling Headers | 4x Fan headers incl. Pump Headers, Smart Fan 6 |
| RGB & LED Headers | 3x ARGB Gen2, 1x RGB LED |
| Audio | Realtek 7.1 HD Audio, 3x Audio Jacks |
| I/O Ports (Rear) | HDMI, DisplayPort, PS/2, SMA Wi-Fi, RJ-45, 3x Audio Jacks, USB-C, 8x USB ports |
| Internal Connectors | TPM Header, Serial Port, Q-Flash Plus, Clear CMOS Jumper, 24-pin & 8-pin Power |
| Special Features | EZ-Latch PCIe Slot, Q-Flash Plus, GIGABYTE Control Center, Norton OEM, LAN Manager |
| Warranty | 2-Year Official Warranty + 1-Year Additional from Takeplus Computer ((No warranty for physical and burn damage) |
