-5%

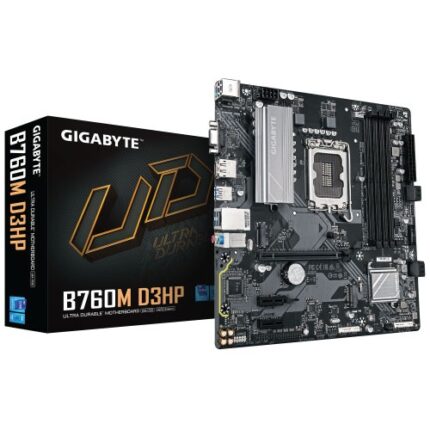

GIGABYTE INTEL B760M D3HP DDR5 ATX Motherboard
Original price was: 17,700.00৳ .16,699.00৳ Current price is: 16,699.00৳ .

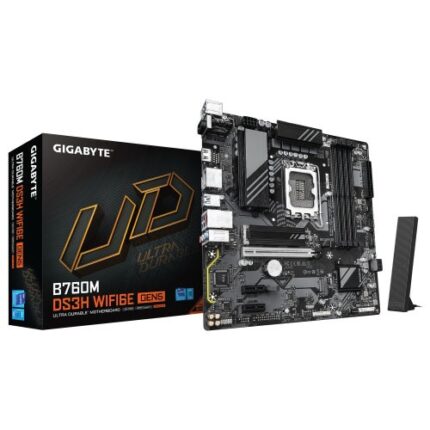

GIGABYTE INTEL B760M DS3H WF6E GEN5 DDR5 Motherboard
Original price was: 20,000.00৳ .19,199.00৳ Current price is: 19,199.00৳ .

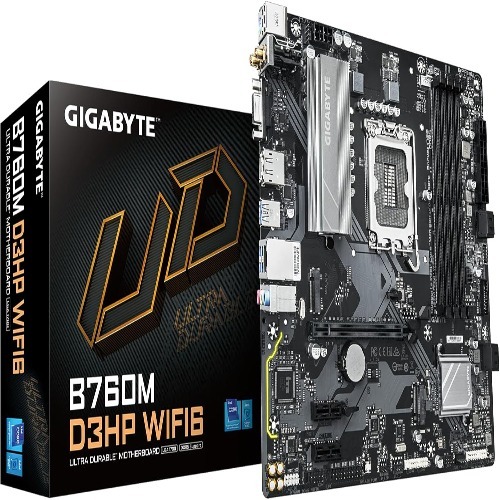

GIGABYTE B760M D3HP WIFI6 DDR5
Original price was: 18,800.00৳ .17,899.00৳ Current price is: 17,899.00৳ .
| Feature | Details |
|---|---|
| CPU | Intel 14th/13th/12th Gen Core™, Pentium Gold, Celeron |
| Memory | DDR5 Dual Channel, 4 DIMMs, up to 256GB, XMP Ready, Overclockable |
| Graphics | HDMI 2.1 + DisplayPort 1.2 + D-Sub, Triple Display |
| Audio | Realtek 8-Ch HD, Audio Noise Guard, High-End Capacitors |
| Networking | GbE LAN, Wi-Fi 6, Bluetooth 5.3 |
| Storage | 2 × PCIe 4.0 M.2, 4 × SATA 6Gb/s, RAID 0/1/5/10 |
| Expansion | 1 × PCIe 4.0 x16, 2 × PCIe 3.0 x1 |
| USB | Type-C 5Gb/s, 3 × USB 3.2 Gen1, 6 × USB 2.0/1.1 |
| Cooling | Smart Fan 6, dual curve, Fan Stop, high-current support |
| Special Features | Q-Flash Plus, EZ-Latch, GIGABYTE Control Center, UC BIOS |
| Form Factor | Micro ATX, 24.4 × 24.4 cm |
| Warranty | Total 3 Years Warranty by Takeplus Computer |
Description
| Component | Specification |
|---|---|

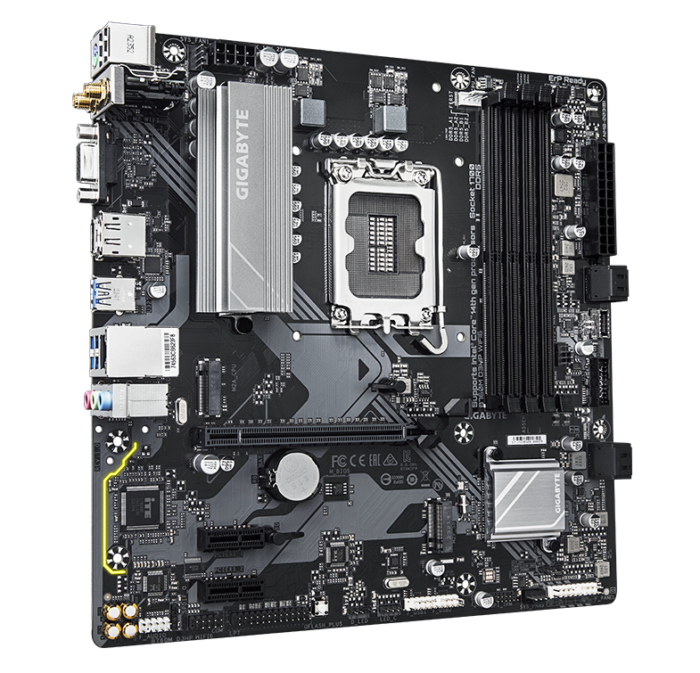

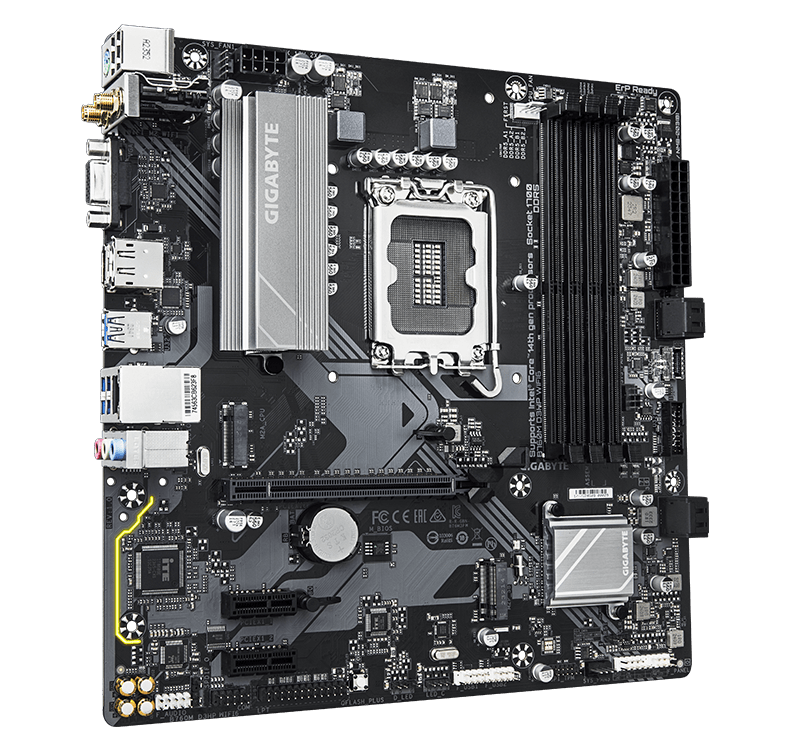

| Model | GIGABYTE B760M D3HP WIFI6 |
| CPU Support | LGA1700 socket Intel 14th / 13th / 12th Gen Core™, Pentium Gold, Celeron L3 cache varies by CPU |
| Chipset | Intel B760 Express |
| Memory | 4 × DDR5 DIMM slots Dual channel, up to 256 GB (64 GB per DIMM) DDR5 5600/5200/4800/4400 MT/s (i9/i7 14th/13th Gen), DDR5 4800/4400 MT/s (i5/i3 13th Gen & 12th Gen Core™, Pentium Gold, Celeron) ECC UDIMM (non-ECC mode), non-ECC UDIMM, XMP Ready |
| Graphics | Integrated Intel HD Graphics 1 × D-Sub (1920×1200@60Hz) 1 × HDMI 2.1 (4096×2160@60Hz) 1 × DisplayPort 1.2 (4096×2304@60Hz) Triple display support |
| Audio | Realtek HD Audio CODEC 8-channel, Audio Noise Guard, High-End Audio Capacitors S/PDIF Out |
| Networking | Realtek GbE LAN, Wi-Fi 6 802.11ax, Bluetooth 5.3 |
| Expansion Slots | 1 × PCIe 4.0 x16, 2 × PCIe 3.0 x1 |
| Storage | 2 × M.2 PCIe 4.0 x4/x2 (CPU + Chipset) 4 × SATA 6Gb/s RAID 0/1/5/10 support |
| USB Ports | 1 × USB Type-C (internal, USB 3.2 Gen 1) 5 × USB 3.2 Gen 1 (3 back + 2 internal) 6 × USB 2.0/1.1 (2 back + 4 internal) |
| Internal I/O | 24-pin ATX, 8-pin ATX 12V CPU + 3 system fan headers Addressable + RGB LED headers 2 × M.2 connectors, 4 × SATA Front panel + audio headers, USB headers Serial + Parallel + TPM + S/PDIF Out headers Q-Flash Plus button, Reset jumper, Clear CMOS jumper |
| Back Panel I/O | 2 × USB 2.0/1.1 1 × PS/2 keyboard/mouse 1 × D-Sub 1 × HDMI 2.1 1 × DisplayPort 1.2 3 × USB 3.2 Gen 1 1 × RJ-45 LAN 3 × audio jacks 2 × SMA antenna connectors |
| Cooling & Fan Control | Smart Fan 6: PWM/DC fan and pump support, high current (12V x 2A), multiple temperature sensors, dual slope/stair curve, Fan Stop, Fan curve profiles saved in BIOS |
| BIOS & Software | 128 Mbit AMI UEFI BIOS Q-Flash, Q-Flash Plus UC BIOS redesigned UI & UX GIGABYTE Control Center (GCC) |
| Form Factor | Micro ATX, 24.4 × 24.4 cm |
| Warranty | 2 Years officially Warranty + 1 Additional Year Warranty from Takeplus Computer (No Warranty for External Damages) |
