-6%
GIGABYTE INTEL B760M K DDR4 ATX Motherboard
Original price was: 13,800.00৳ .12,999.00৳ Current price is: 12,999.00৳ .
GIGABYTE INTEL B760M D3HP DDR4 ATX Motherboard
Original price was: 17,000.00৳ .16,299.00৳ Current price is: 16,299.00৳ .
Gigabyte Intel Chipset B760M H DDR4 Motherboard
Original price was: 14,500.00৳ .13,699.00৳ Current price is: 13,699.00৳ .
| Highlights | Details |
|---|---|
| CPU Support | Intel 14th / 13th / 12th Gen, Pentium Gold, Celeron |
| Memory | Dual Channel DDR4, up to 64GB, XMP Ready |
| Graphics | HDMI 2.0 (4K@60Hz) + D-Sub |
| Storage | Dual PCIe 4.0 M.2 + 4 × SATA RAID |
| Audio | Realtek HD Audio, 7.1 Channel, S/PDIF Out |
| Networking | Realtek GbE LAN (1 Gbps) |
| USB Ports | 6 × USB 3.2 Gen 1 + 6 × USB 2.0 |
| Expansion | PCIe 4.0 x16 EZ-Latch + PCIe 3.0 x1 |
| Cooling | Smart Fan 6, Hybrid Headers, FAN STOP |
| Special Features | Gigabyte Control Center, Q-Flash |
| Form Factor | Micro ATX (23.0 × 21.5 cm) |
| Warranty | Total 2 Years Warranty by Takeplus Computer |
Description
| Specification | Details |
|---|---|

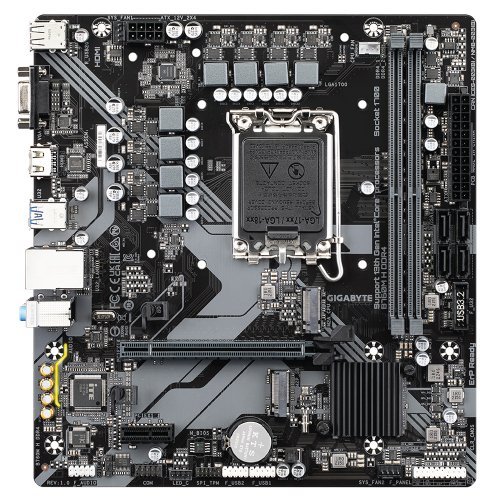

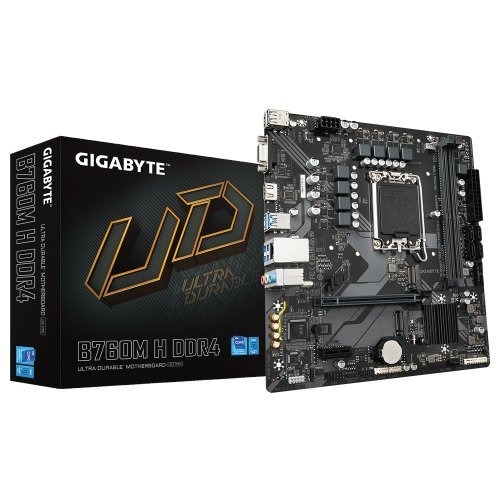

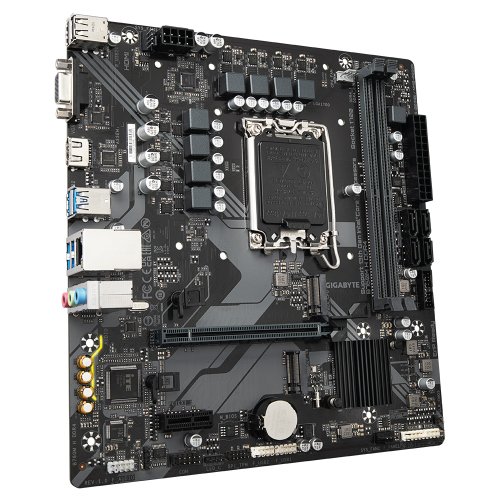

| Model | GIGABYTE B760M H DDR4 mATX |
| CPU Support | LGA1700 socket Supports Intel 14th / 13th / 12th Gen Core™, Pentium® Gold, Celeron® |
| Chipset | Intel B760 Express |
| Memory | 2 × DDR4 DIMM slots Dual channel, up to 64GB (32GB per DIMM) DDR4 3200/3000/2933/2666/2400/2133 MT/s ECC UDIMM (non-ECC mode) & non-ECC UDIMM XMP support |
| Graphics | Integrated Intel HD Graphics 1 × HDMI 2.0 (4096×2160@60Hz, HDCP 2.3) 1 × D-Sub (1920×1200@60Hz) |
| Audio | Realtek® HD Audio CODEC 2/4/5.1/7.1-channel S/PDIF Out support 3 × audio jacks |
| Networking | Realtek GbE LAN (1 Gbps/100 Mbps) |
| Expansion Slots | 1 × PCIe 4.0 x16 (CPU, EZ-Latch Quick Release) 1 × PCIe 3.0 x1 (Chipset) |
| Storage | 2 × M.2 PCIe 4.0 x4/x2 (2280, CPU + Chipset) 4 × SATA 6Gb/s (RAID 0/1/5/10) |
| USB | 6 × USB 3.2 Gen 1 (4 rear, 2 internal) 6 × USB 2.0/1.1 (2 rear, 4 internal) |
| Internal I/O | 24-pin ATX + 8-pin ATX 12V CPU fan header, 2 × system fan headers RGB LED header 2 × M.2 connectors 4 × SATA ports Front panel + audio headers S/PDIF Out header USB 3.2 Gen 1 header, 2 × USB 2.0 headers Serial port header TPM header (GC-TPM2.0 SPI) Clear CMOS jumper |
| Back Panel | 2 × USB 2.0 4 × USB 3.2 Gen 1 1 × HDMI 1 × D-Sub 1 × RJ-45 LAN 3 × audio jacks |
| BIOS | 128 Mbit Flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 |
| Unique Features | Gigabyte Control Center (GCC) Q-Flash Smart Fan 6 with hybrid fan headers & FAN STOP |
| Bundled Software | Norton Internet Security (OEM) LAN Bandwidth Management |
| OS Support | Windows 11 64-bit / Windows 10 64-bit |
| Form Factor | Micro ATX (23.0 × 21.5 cm) |
| Warranty | 2 Years officially Warranty + 1 Additional Year Warranty from Takeplus Computer (No Warranty for External Damages) |
