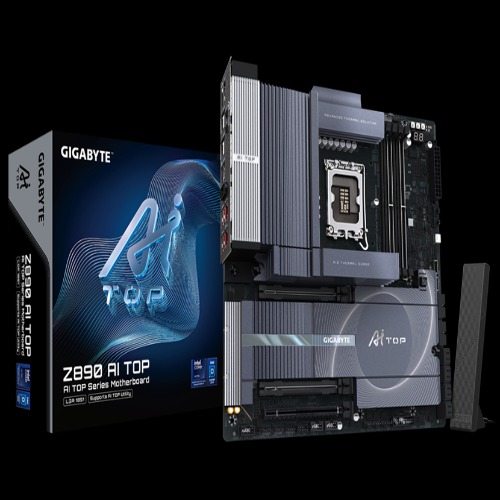

Gigabyte Z890 AI TOP WIFI7 LGA 1851 EATX Motherboard
94,600.00৳
| Feature Area | Highlights |
|---|---|
| CPU & RAM | Supports Intel Core Ultra Series 2 + DDR5 up to 9500 MHz |
| Graphics Output | Triple Display Support: HDMI 2.1 + Thunderbolt 5/4 (4K to 8K resolution) |
| Storage & Expansion | 4× PCIe M.2 (2× PCIe 5.0), 8× SATA, Triple PCIe Slots |
| Connectivity | Dual 10GbE LAN, Wi-Fi 7, Bluetooth 5.4, Dual Thunderbolt 5 |
| Thermal Design | Advanced VRM Armor, XL M.2 Thermal Guard |
| DIY & Extras | EZ-Latch Plus (tool-less PCIe/M.2), AI Overclocking (AI Snatch), BIOS Tuning (AI PerfDrive) |
| Audio Quality | ESS ES9260 Hi-Fi DAC + ALC897 for immersive sound |
| Ideal For | High-performance PC builds, AI workflows, advanced content creation, enthusiast gamers |
Description
| Category | Details |
|---|---|
| CPU Support | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel Z890 |
| Form Factor | E-ATX (30.5cm x 28.5cm) |
| BIOS | 256 Mbit flash, AMI UEFI BIOS, ACPI 5.0, SM BIOS 2.7 |
| Memory Support | 4× DDR5 DIMM, up to 256GB, up to DDR5-9500(O.C), dual-channel, ECC/Non-ECC, XMP, CUDIMM supported |
| Graphics Output | 2× Thunderbolt 5 (USB-C), 1× HDMI 2.1, 1× Thunderbolt 4 (USB-C) Max Res: up to 7680×4320@60Hz (TB5), 5120×2880@60Hz (TB4), 4096×2160@60Hz (HDMI) |
| Audio | Rear: ESS ES9260 Codec (2ch HD Audio) Front: Realtek ALC897 |
| LAN | Dual Marvell AQtion AQC113C 10GbE LAN (10G/5G/2.5G/1G/100M) |
| Wi-Fi / BT | Intel Wi-Fi 7 BE200, Bluetooth 5.4 |
| Storage | 4× SATA (ASM1164), 4× SATA (Chipset) = Total 8x SATA III 4× PCIe M.2 (CPU+Chipset), up to PCIe 5.0 x4 |
| PCIe Slots | 1× PCIe 5.0 x16, 1× PCIe 5.0 x8 (shared bandwidth), 1× PCIe 4.0 x4 |
| USB Ports | Rear: 2× TB5 (USB-C), 6× USB 3.2 Gen 2 Type-A, 2× USB 3.2 Gen 1 Internal: USB4, USB-C Gen2x2, USB 3.2 Gen 1, USB 2.0 |
| Back Panel I/O | 2× RJ-45 (10GbE), 2× TB5 USB-C, 1× HDMI, 6× USB 3.2 Gen 2 (Type-A), 2× USB 3.2 Gen 1, 2× Audio Jacks, 2× Antenna Ports |
| Internal I/O | 8× SATA, 4× M.2, 4× Fan headers, 3× ARGB Gen2, 2× USB-C headers, TPM header, Power/Reset/Q-Flash buttons |
| RAID Support | RAID 0/1/5/10 (SATA + NVMe) |
| Software | GIGABYTE Control Center, Norton OEM, LAN management |
| Special Features | EZ-Latch Plus, AI PerfDrive, AI Snatch, M.2 Thermal Guard XL, VRM Thermal Armor |
| Warranty | 2-Year Official Warranty + 1-Year Additional from Takeplus Computer ((No warranty for physical and burn damage) |
