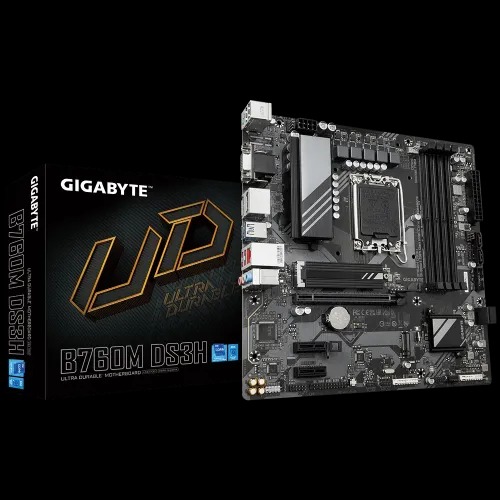

Mainboard B760 Gigabyte B760M DS3H DDR5
Original price was: 18,000.00৳ .16,500.00৳ Current price is: 16,500.00৳ .
| Key Features | Description |
|---|---|
| Model | B760M DS3H |
| Supported CPU | 14th / 13th / 12th Gen Intel Core, Pentium Gold, and Celeron Processors (LGA1700 Socket) |
| Supported RAM | 4 x DDR5 DIMM Slots, Up to 192GB, Supports up to 7600(O.C.) MT/s |
| Graphics Output | 1 x HDMI, 2 x DisplayPort, 1 x D-Sub (Quad-display support) |
| Network Feature | Realtek 2.5GbE LAN Chip for high-speed and stable connectivity |
Description
| Specification | Details |
|---|---|
| Brand | GIGABYTE |
| Model | B760M DS3H |
| Socket | LGA1700 |
| CPU Support | 14th / 13th / 12th Gen Intel Core, Pentium Gold, Celeron |
| Chipset | Intel B760 Express |
| Form Factor | Micro-ATX (24.4cm x 24.4cm) |
| Memory Type | DDR5 |
| Memory Slots | 4 x DIMM |
| Max Memory | Up to 192GB (48GB per DIMM) |
| Memory Support | DDR5 7600(O.C.) down to 4000 MT/s, Dual Channel, XMP, ECC (non-ECC mode) |
| Graphics Ports | 1 x HDMI 2.0, 2 x DisplayPort 1.2, 1 x D-Sub |
| Max Display Support | Quad Display |
| USB Ports | Rear: 1 x USB 3.2 Gen 2 Type-C, 3 x USB 3.2 Gen 1, 2 x USB 2.0; Internal: 2 x USB 3.2 Gen 1, 4 x USB 2.0 |
| Expansion Slots | 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1 |
| M.2 Slots | 2 x M.2 PCIe 4.0 x4/x2 (1 from CPU, 1 from chipset) |
| SATA Ports | 4 x SATA 6Gb/s |
| RAID Support | RAID 0, 1, 5, 10 (for SATA devices) |
| Audio | Realtek Audio CODEC, 7.1 Channel, S/PDIF Out |
| LAN | Realtek 2.5GbE LAN |
| Internal Connectors | 1 x 24-pin ATX, 1 x 8-pin CPU, 3 x SYS Fan, 1 x CPU Fan, RGB & ARGB headers, TPM, Q-Flash Plus |
| Special Features | Smart Fan 6, Q-Flash & Q-Flash Plus, PCIe EZ-Latch, GCC Software, Dual M.2 Thermal Guard |
| BIOS | AMI UEFI BIOS, 128 Mbit Flash |
| Warranty | 2-Year Manufacture Warranty + 1-Year Additional from Takeplus Computer (No warranty for fan or cooler) |
| Price in Bangladesh | ৳16,500 |
