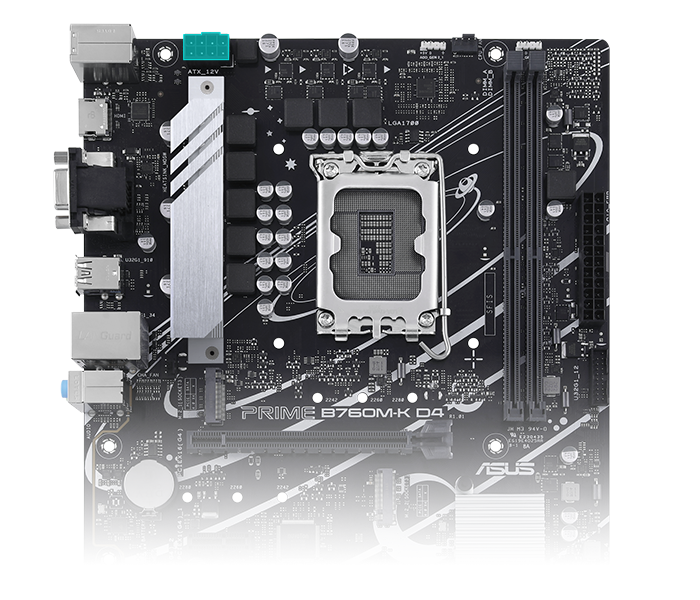

ASUS Pro B660M-C D4-CSM mATX Motherboard
16,800.00৳
ASUS B760M-AYW WIFI D4 mATX Motherboard
19,425.00৳
Asus PRIME B760M-K D4 mATX Motherboard
14,700.00৳
| Key Feature | Quick Insight |
|---|---|
| CPU Support | Intel 14th, 13th, 12th Gen Core CPUs |
| Memory Capacity | 2 x DDR4 DIMMs, Max 64GB, Up to 5333 MHz (OC) |
| Storage Capability | Dual M.2 PCIe 4.0 + 4 SATA with RAID |
| Graphics Output | HDMI + VGA |
| Network Speed | Realtek 2.5Gb Ethernet |
| Audio Performance | Realtek 7.1 HD Audio, Audio Shielding, Premium Capacitors |
| Expansion Options | 1 x PCIe 4.0 x16 + 2 x PCIe 4.0 x1 |
| RGB & Aesthetics | Aura Sync RGB + Gen 2 ARGB Headers |
| Durability Features | 5X Protection III, Stainless-Steel Back I/O |
| Best Use Case | Budget Gaming, Home & Office Builds, RGB-Compatible Systems |
Description
| Feature Category | Description |
|---|---|
| Model | ASUS PRIME B760M-K D4 |
| Socket | Intel LGA1700 |
| Supported CPU | Intel 14th / 13th / 12th Gen Core, Pentium Gold, Celeron |
| Chipset | Intel B760 |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | mATX (24.4 cm x 21.1 cm) |
| Memory Support | 2 x DDR4 DIMM, up to 64GBUp to 5333 MHz (OC), Dual Channel, XMP Support |

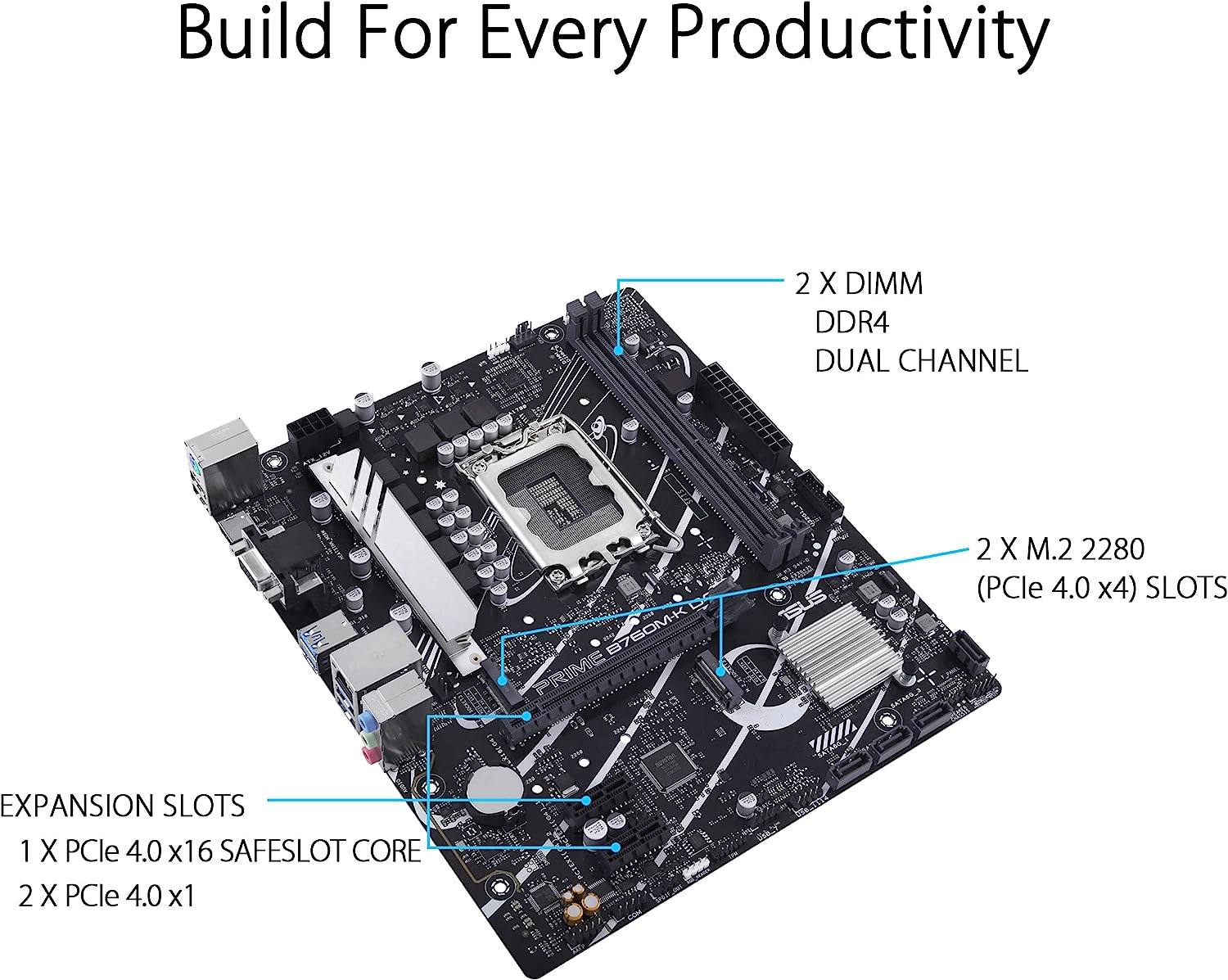

| Expansion Slots | 1 x PCIe 4.0 x16 (CPU)2 x PCIe 4.0 x1 (Chipset) |

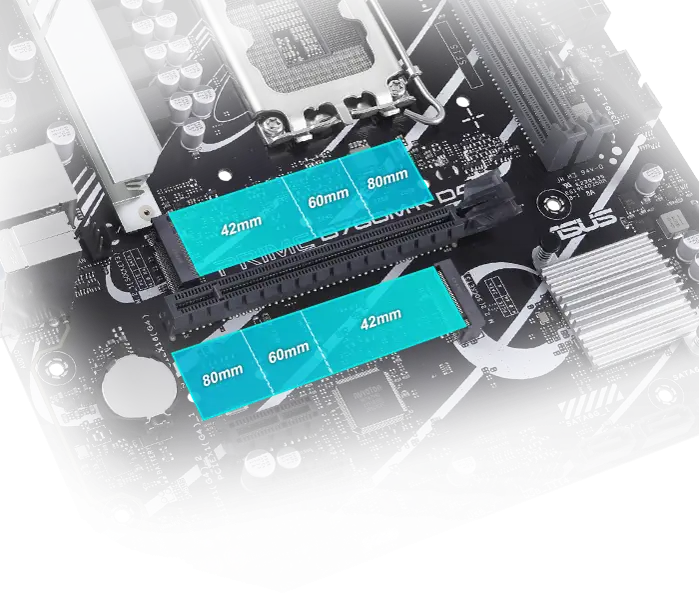

| Storage Interface | 2 x M.2 PCIe 4.0 x44 x SATA 6Gb/sIntel RST RAID 0/1/5/10 |
| Graphics Output | 1 x HDMI, 1 x VGA |
| Audio | Realtek 7.1 HD Audio CODECSupports 24-bit/192kHz playbackAudio Shielding, Premium Capacitors |
| USB Ports (Rear) | 4 x USB 3.2 Gen 1 (Type-A)2 x USB 2.0 (Type-A) |
| USB Ports (Front) | 1 x USB 3.2 Gen 1 header (2 ports)2 x USB 2.0 headers (3 ports) |
| LAN | 1 x Realtek 2.5Gb Ethernet |
| Cooling Support | 1 x CPU Fan Header1 x Chassis Fan Header |
| Internal Headers | 1 x 24-pin Main Power1 x 8-pin CPU Power2 x Addressable Gen 2 RGB1 x Aura RGB1 x TPM Header (SPI)1 x S/PDIF Out1 x Clear CMOS1 x COM Port1 x AAFP Audio1 x Speaker1 x System Panel |
| RGB Lighting | Aura Sync Support1 x Aura RGB Header2 x Addressable Gen 2 Headers |
| Special Features | 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, etc.)Q-Design (Q-LED Core, Q-DIMM, Q-Slot)Fan XpertAI Suite 3ProCool Power Connector |
| Software Bundle | Armoury Crate, AI Suite 3, CPU-Z, WinRAR, Norton 360 (60-day Trial) |
| Warranty | 2 Year Official Warranty (1 year parts/labor, no on-site) + 1 Additional Year from Takeplus Computer |
| Price in Bangladesh | ৳14,400 Takeplus Computer |
