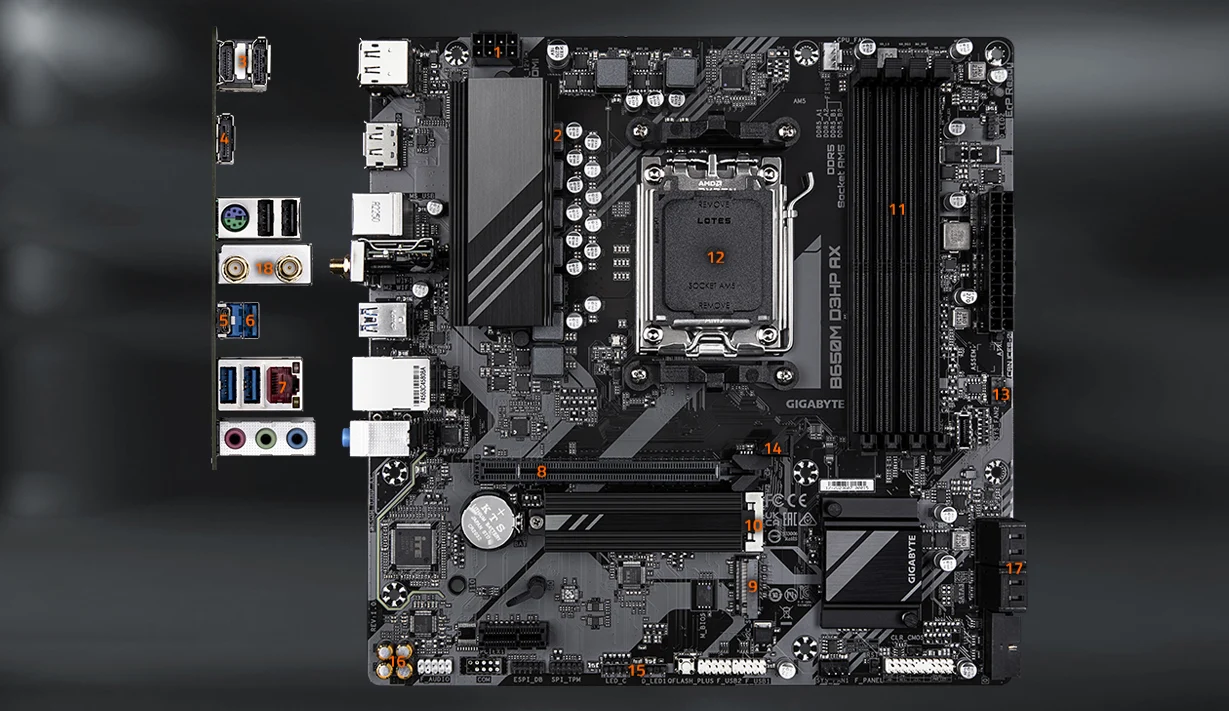

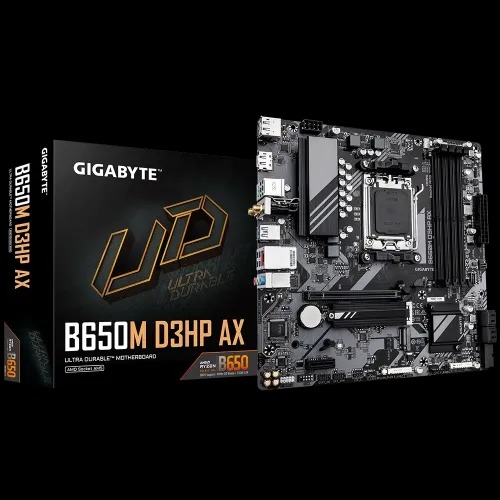

GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard
20,620.00৳
| Feature | Description |
|---|---|
| CPU Compatibility | AMD Ryzen 7000 & 8000 Series with AM5 socket |
| Memory Support | DDR5 up to 192GB, 4 DIMMs, AMD EXPO & Intel XMP compatible |
| Graphics Outputs | Triple display with HDMI 2.1 and dual DisplayPort 1.4 |
| High-Speed Networking | Realtek 2.5GbE LAN + Wi-Fi 6E (802.11ax) with Bluetooth 5.3 |

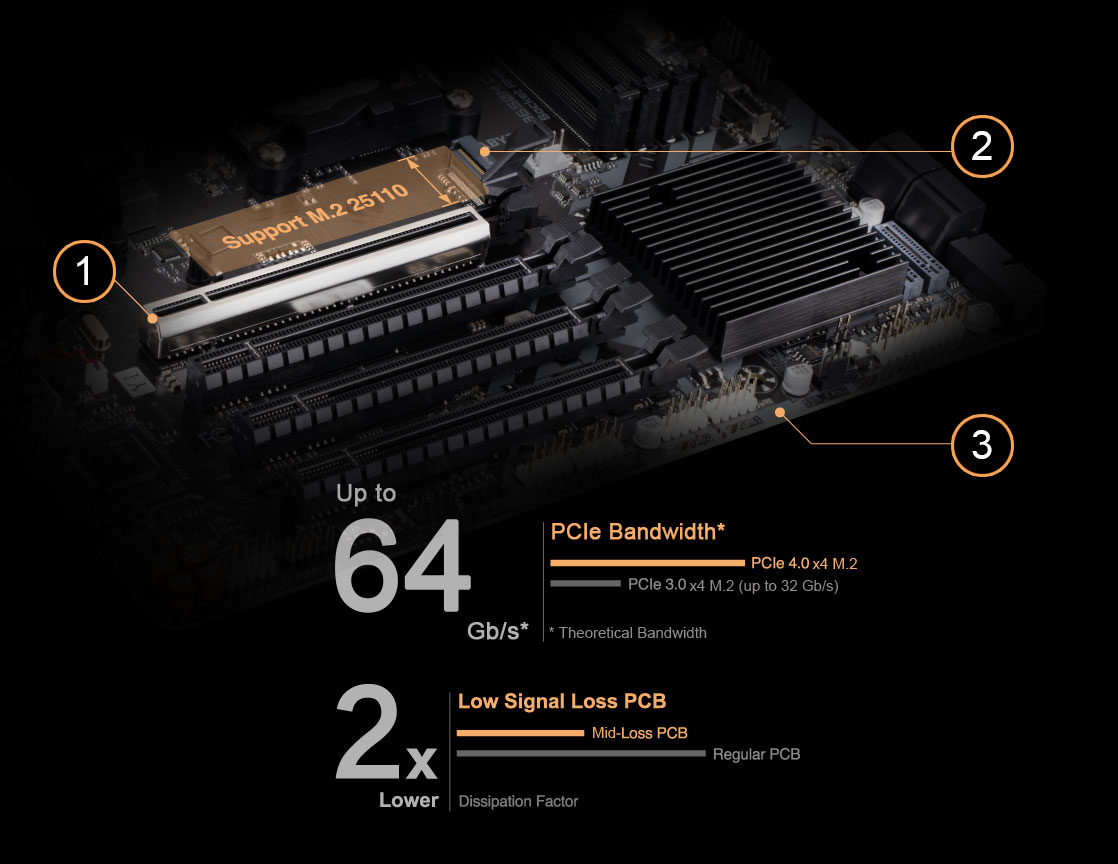

| Storage Flexibility | Dual M.2 PCIe 4.0 slots + 4 SATA 6Gb/s ports with RAID 0,1,10 support |
| Expansion | 1 PCIe x16 slot for GPU or NVMe SSD; 1 PCIe x1 slot |
| Advanced BIOS Features | Q-Flash Plus for BIOS update without CPU/RAM/GPU installed |
| Cooling & Aesthetics | Multiple fan headers + RGB/LED headers + Smart Fan 6 support |
| Security | TPM header support |
| Warranty & Software | 2-Year Official Warranty + 1-Year Additional from Takeplus Computer +Surprise gift |
Description
| Category | Details |
|---|---|
| Supported CPU | AMD Socket AM5; Supports AMD Ryzen 7000 / 8000 Series Processors |
| Chipset | AMD B650 |
| BIOS | 1 x 256 Mbit Flash; Licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX (24.4cm x 24.4cm) |
| Audio | Realtek Audio CODEC; High Definition; 2/4/5.1/7.1 channel; 3 x audio jacks |
| Expansion Slots | 1 x PCIe x16 (CPU, PCIe 4.0 varying modes by CPU), 1 x PCIe x1 (Chipset, PCIe 3.0 x1) |
| Memory | DDR5; 4 DIMMs; Up to 192GB; Supports AMD EXPO & Intel XMP profiles |
| Graphics Outputs | 1 x HDMI 2.1 (4K@60Hz); 2 x DisplayPort 1.4 (4K@144Hz); Triple display support |
| USB Ports | Back: 1 x USB-C (3.2 Gen 1), 3 x USB 3.2 Gen 1, 3 x USB 2.0/1.1 (including Type-C internal) |
| Networking | Realtek 2.5GbE LAN; Realtek Wi-Fi 6E RTL8852CE (2.4/5/6 GHz); Bluetooth 5.3 |
| Storage | 2 x M.2 Slots (PCIe 4.0 x4/x2); 4 x SATA 6Gb/s connectors |
| RAID Support | RAID 0, 1, 10 for NVMe and SATA devices |
| Internal Connectors | Power connectors (24-pin, 8-pin), Fan headers, RGB/LED headers, USB headers, Q-Flash Plus button |
| Back Panel Connectors | PS/2 port, USB-C & USB 3.2 Gen 1 ports, HDMI, DisplayPorts, RJ-45 LAN, Audio jacks |
| TPM Support | TPM header for compatible TPM modules |
| Special Features | GIGABYTE Control Center support, Q-Flash, Q-Flash Plus, Norton Security (OEM) |
| Warranty | 2-Year Official Warranty + 1-Year Additional from Takeplus Computer ((No warranty for physical and burn damage) |
