-4%
Gigabyte Intel Chipset B760M H DDR4 Motherboard
Original price was: 14,500.00৳ .13,699.00৳ Current price is: 13,699.00৳ .
GIGABYTE INTEL B760M GAMING DDR4 Motherboard
Original price was: 19,800.00৳ .19,399.00৳ Current price is: 19,399.00৳ .
GIGABYTE INTEL B760M D3HP DDR4 ATX Motherboard
Original price was: 17,000.00৳ .16,299.00৳ Current price is: 16,299.00৳ .
| Feature | Details |
|---|---|
| CPU | Intel 14th/13th/12th Gen Core™, Pentium Gold, Celeron |
| Memory | DDR4 Dual Channel, 4 slots, up to 128GB, XMP Ready |
| Graphics | HDMI 2.1 + DisplayPort 1.2 + D-Sub, Triple-display support |
| Audio | Realtek HD Audio, 7.1-channel, S/PDIF Out |
| Storage | 2 × M.2 PCIe 4.0, 4 × SATA 6Gb/s, RAID 0/1/5/10 |
| Expansion | 1 × PCIe 4.0 x16, 2 × PCIe 3.0 x1 |
| USB | USB Type-C + 3 × USB 3.2 Gen 1 + 6 × USB 2.0/1.1 |
| Networking | GbE LAN 1 Gbps |
| Cooling | CPU + 3 system fan headers, Smart Fan compatible, RGB/Addressable LED headers |
| Special Features | Gigabyte Control Center (GCC), Q-Flash / Q-Flash Plus |
| Form Factor | Micro ATX (24.4 × 24.4 cm) |
| Warranty | Total 3 Years Warranty by Takeplus Computer |
Description
| Component | Specification |
|---|---|

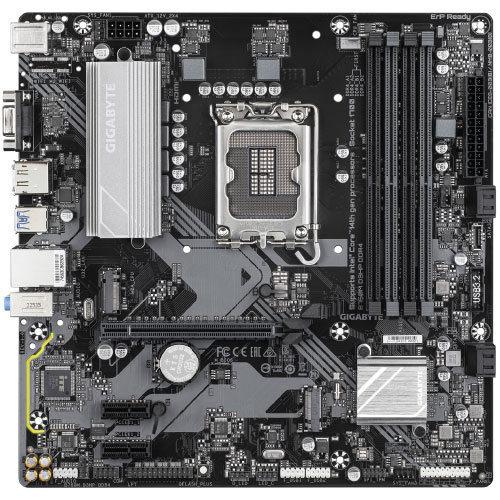

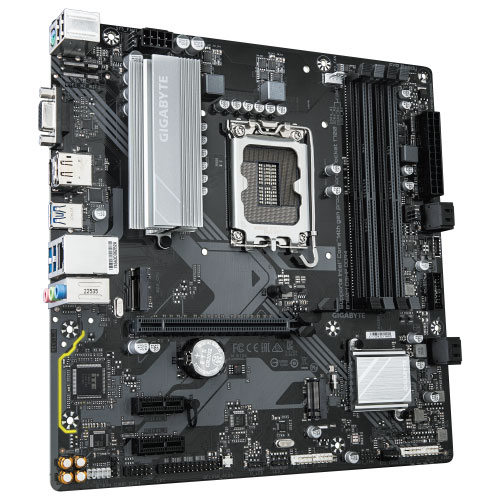

| Model | GIGABYTE B760M A DDR4 Micro ATX |
| CPU Support | LGA1700 socket, Intel 14th/13th/12th Gen Core™, Pentium® Gold, Celeron® L3 cache varies with CPU |
| Chipset | Intel B760 Express |
| Memory | 4 × DDR4 DIMM slots Dual channel, up to 128 GB (32GB per DIMM) DDR4 5333(O.C.)–2133 MT/s ECC UDIMM (non-ECC mode), non-ECC UDIMM, XMP supported |
| Graphics | Integrated Intel HD Graphics 1 × HDMI 2.1 (4096×2160@60Hz) 1 × DisplayPort 1.2 (4096×2304@60Hz) 1 × D-Sub (1920×1200@60Hz) Triple-display support |
| Audio | Realtek HD Audio CODEC 2/4/5.1/7.1-channel S/PDIF Out 3 × audio jacks |
| Networking | Realtek GbE LAN (1 Gbps/100 Mbps/10 Mbps) |
| Expansion Slots | 1 × PCIe 4.0 x16 (CPU, supports graphics/NVMe SSD) 2 × PCIe 3.0 x1 (Chipset) |
| Storage | 2 × M.2 PCIe 4.0 x4/x2 (CPU + Chipset) 4 × SATA 6Gb/s RAID 0/1/5/10 support |
| USB Ports | 1 × USB Type-C (internal, USB 3.2 Gen 1) 3 × USB 3.2 Gen 1 (rear) + 2 internal 2 × USB 2.0/1.1 (rear) + 4 internal via hub |
| Internal I/O | 24-pin ATX, 8-pin ATX 12V CPU fan + 3 system fan headers Addressable + RGB LED headers 2 × M.2 connectors, 4 × SATA Front panel + audio headers, USB headers Serial + parallel headers, TPM header, S/PDIF Out header Q-Flash Plus button, Reset jumper, Clear CMOS jumper |

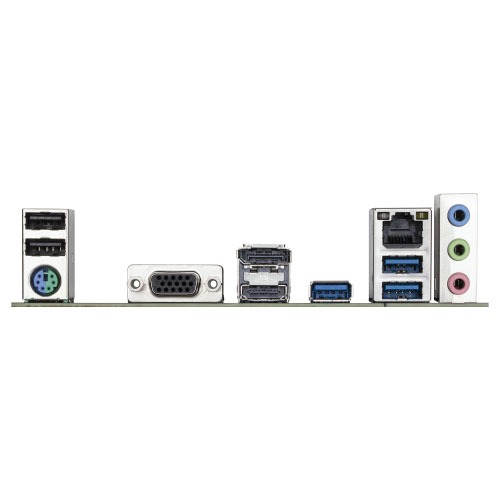

| Back Panel I/O | 2 × USB 2.0/1.1 1 × PS/2 1 × D-Sub 1 × DisplayPort 1 × HDMI 3 × USB 3.2 Gen 1 1 × RJ-45 LAN 3 × audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan Speed, Water Cooling Flow Fan Fail Warning, Fan Speed Control |
| BIOS | 128 Mbit AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 |
| Special Features | Gigabyte Control Center (GCC) Q-Flash & Q-Flash Plus |
| Bundled Software | Norton Internet Security (OEM), LAN Bandwidth Management |
| Operating System | Windows 11 64-bit / Windows 10 64-bit |
| Form Factor | Micro ATX (24.4 × 24.4 cm) |
| Warranty | 2 Years officially Warranty + 1 Additional Year Warranty from Takeplus Computer (No Warranty for External Damages) |
