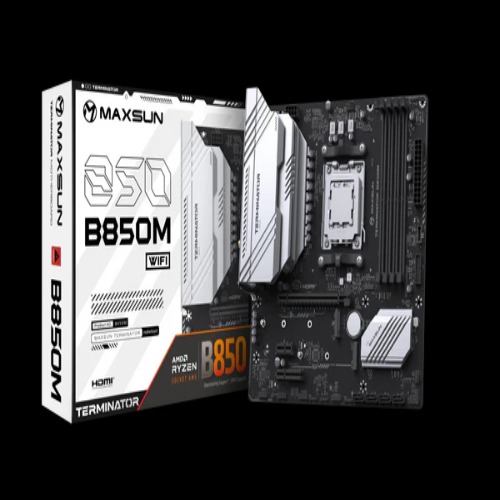

Maxsun Terminator B850M (Wi-Fi 6) DDR5 AMD AM5 Socket Motherboard
30,500.00৳
| Key | Description |
|---|---|
| Model ID | Maxsun Terminator B850M Wi-Fi 6 |
| Socket/Chipset | AM5 |
| Memory Spec | DDR5 |
| GPU Output | HDMI + DisplayPort (4K Capable) |
| Expansion Options | PCIe 4.0 x16 + PCIe 3.0 x4 + PCIe 3.0 x1 |
| Storage Support | 2x M.2 PCIe X4/X2 + 4x SATA |
| Network Spec | 2.5G LAN + Wi-Fi 6 + Bluetooth 5.2 |
| Form Factor | Micro-ATX |
| Cooling Features | Smart Fan Control + 4 Fan Headers |
| Power Architecture | 24-pin + 8-pin |
| Build Theme | All-Black Board |
| OS Compatibility | Win 10 / 11 / Ubuntu |
| Durability & Safety | High ESD Protection + TPM & CLR_CMOS |
| Ideal For | Ryzen Gaming PCs |
| Warranty | 3-Year Replacement |
Description
| Feature | Specification |
|---|---|
| Brand | Maxsun |
| Model | Terminator B850M (Wi-Fi 6) |
| Chipset | AMD B850 |
| CPU Socket | AM5 (Supports Ryzen 7000, 8000, 9000 Series, TDP 170W–230W) |
| Built-in Processor | No |
| Back-Connect Design | Not Supported |
| Memory Type | DDR5 |
| Memory Support | Dual Channel |
| Memory Frequency | 4800–7600MHz (JEDEC & OC supported) |
| Optane Memory Support | Not Supported |
| Integrated Graphics | Depends on Supported Ryzen CPU (with iGPU) |
| M.2/SSD Expansion | 2 x M.2 PCIe X4/X2 (2280/22110) |
| PCIe Slots | 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x4, 1 x PCIe 3.0 x1 |
| SATA Ports | 4 x SATA 6Gb/s |
| LAN | Realtek 8125B/D |
| Audio | Realtek ALC897 |
| Wi-Fi | Realtek 8852BE |
| Bluetooth | Version 5.2 |
| USB Ports | 4 x USB 3.2 Type-A, 4 x USB 2.0, 1 x USB Type-C |
| Video Output | HDMI 1.4 (4K@30Hz), DisplayPort (4K@60Hz) |
| TPM Support | Yes |
| COM Port | Yes |
| RGB Lighting Support | Not Supported |
| Cooling Setup | 3 x System Fan + 1 x CPU Fan Header |
| Heatsinks | None built-in |
| Power Connectors | 24-pin ATX + 8-pin ATX12V |
| ESD Protection | 8kV air discharge, ±6kV contact discharge |
| TDP Support | 170W to 230W |
| Special Features | CLR_CMOS Button, TPM Header, COM_A Header, SPDIF, DP Output, Front Cable Management |
| Form Factor | Micro-ATX |
| Operating Systems | Windows 10, 11 & Ubuntu |
| Color Scheme | Full Black |
| Country of Origin | China |
| Warranty | 2-Year Limited Warranty + 1-Year Additional from Takeplus Computer ((No warranty for physical and burn damage) |
